Removing Footwell Light

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip footwell light using a plastic wedge -A-  and remove it -B-  .

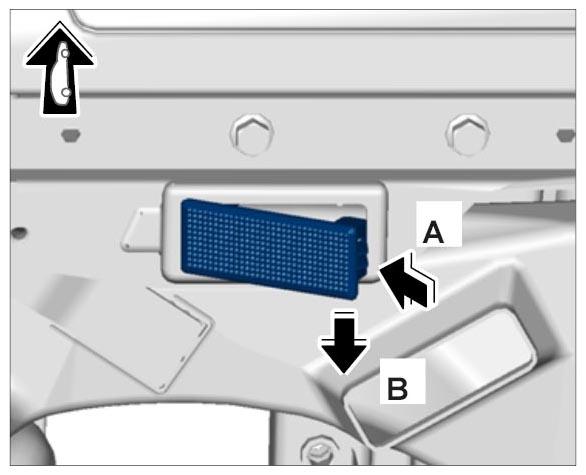

    Fig 1: Unclipping Footwell Light
    G09814898Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull off electric plug connection.

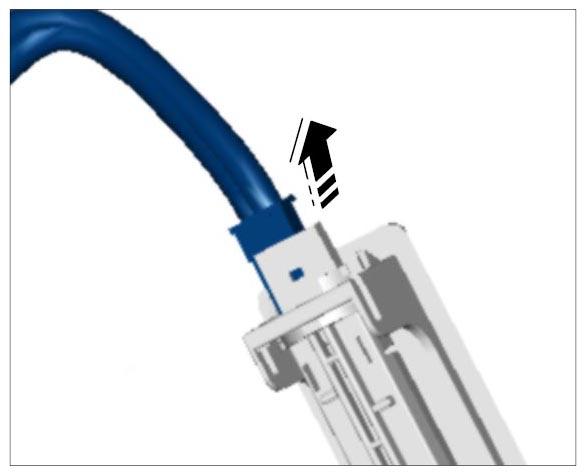

    Fig 2: Disconnecting Electric Plug Connection
    G09814899Courtesy of PORSCHE CARS NORTH AMERICA, INC.
