Subsequent Work: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the wheel. Use assembly aids (assembly pins) -1-  . → 440519 REMOVING AND INSTALLING WHEEL l

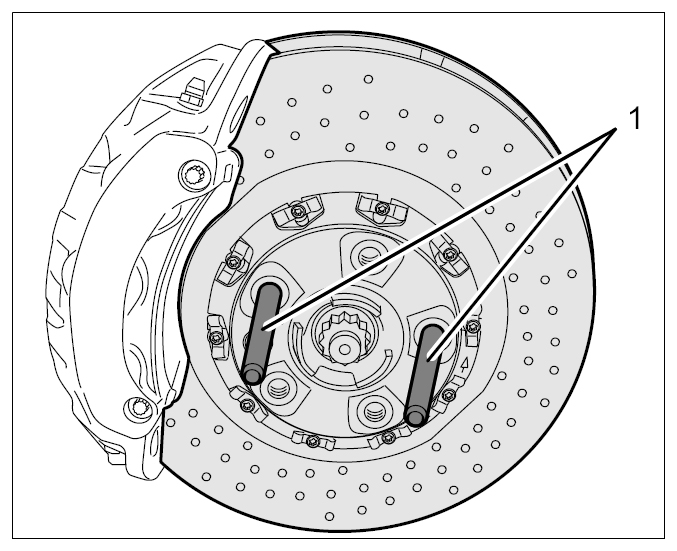

    Fig 1: Identifying PCCB Brake Disc And Calliper (Example)
    G09808081Courtesy of PORSCHE CARS NORTH AMERICA, INC.
