Removing Rear Brake Disc
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removing/fitting wheels
- Risk of damage to (ceramic) brake discs
→ Use two assembly pins when removing and fitting the wheel.
→ Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

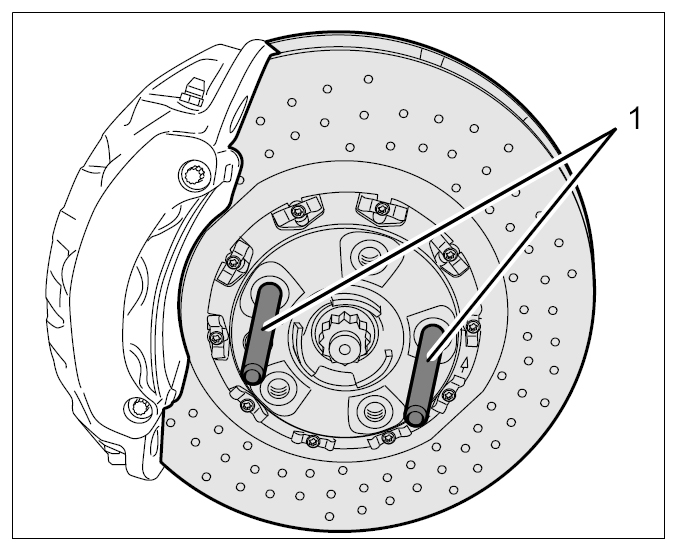

- Screw the two assembly aids (assembly pins) -1- , instead of two wheel bolts, into the wheel hub before removing/fitting the wheel. During removal, first remove the three remaining wheel bolts and remove the wheel carefully without touching the brake discs.
- Then (after removing the wheel), remove the two assembly aids (assembly pins) -1- again.
- Connect and start the Porsche System Tester.
- 3.1. Select parking brake.
- 3.2. Select Maintenance/repair.
- 3.3. Move to installation position.

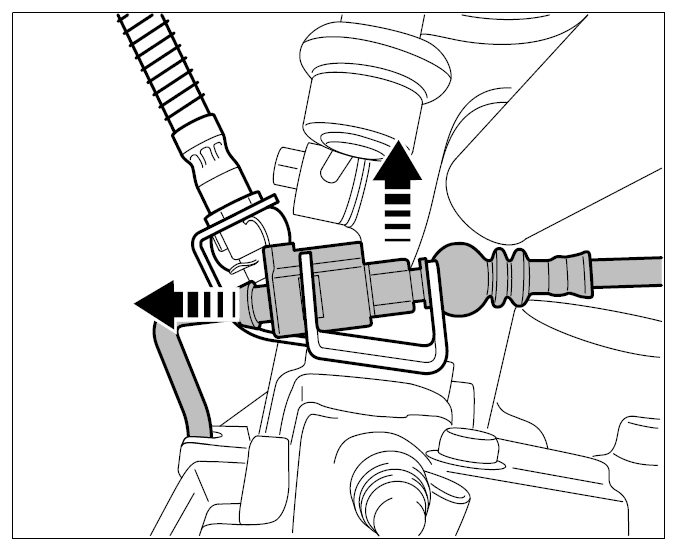

- Disconnect the plug connection for the brake pad wear indicator and detach it from the holder. → Plug connection, brake pad wear indicator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE: Removal of brake calliper- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.
→ Protect brake calliper from paint defects using a suitable cloth.
- Evenly set back brake pads a little using water pump pliers.

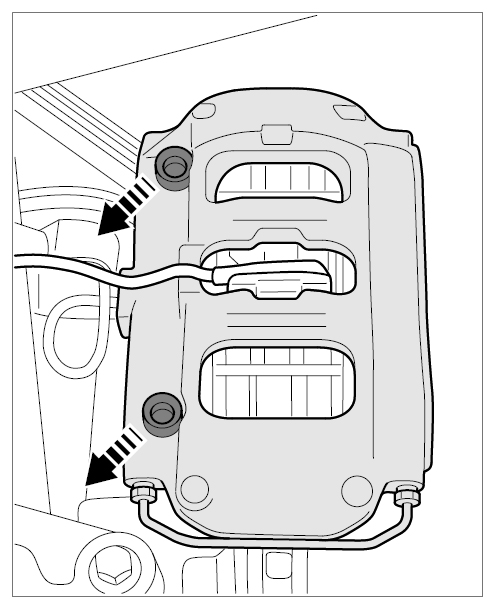

- Undo the brake calliper on the wheel carrier and suspend it at a suitable place in the wheel housing (do not open the brake hydraulic system!).

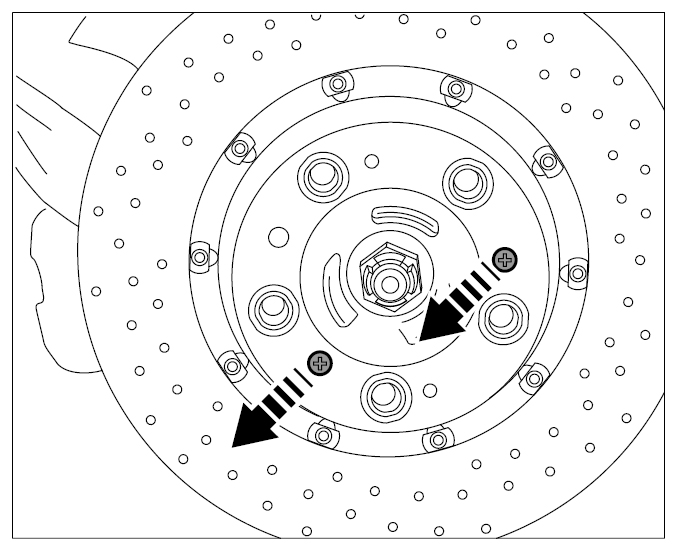

- Take off the brake disc after removing the fastening screws. → Brake disc fastening screws
