Removing Side Cover For Front Underbody

  1. Press release -arrow-  and disconnect hose for headlight ventilation -3-  .
  2. Unscrew fastening screws -2-  and remove side cover at the front -1-  .

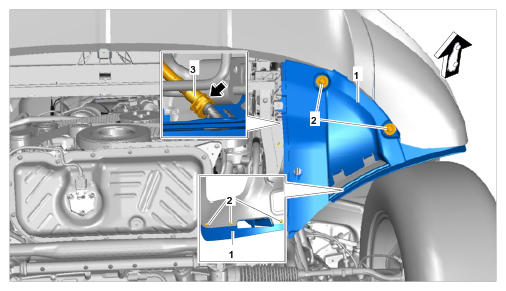

    Fig 1: Identifying Front Underbody Side Cover
    G10030825Courtesy of PORSCHE CARS NORTH AMERICA, INC.
