Preparing Roof For Installation

  1. Prepare connection flanges in areas -A-  for bonding and welding.

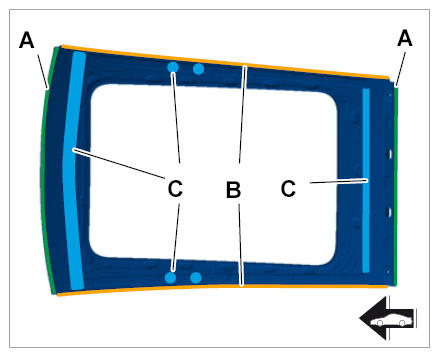

    Fig 1: Identifying Roof Connection Flanges Areas
    G10030564Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Prepare bonding surfaces for applying structural adhesive -B-  . → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
  3. Clean bonding areas of support adhesive -C-  from inside using acetone.
