Removing sun blind
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .
- Detach strut from sun blind.

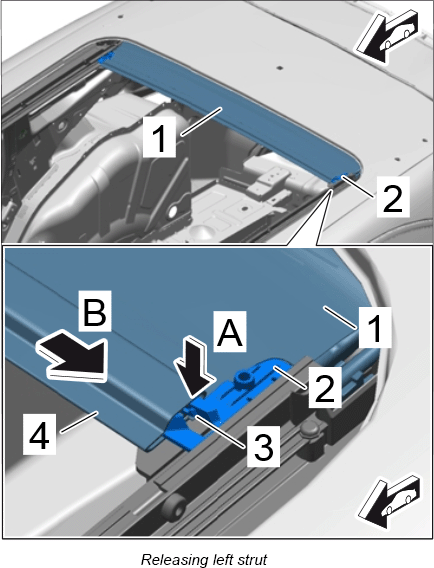

- 1.1. Press down the locking mechanism -3-
on the left side -A-
.
- 1.2. Push aluminum section -4- fully to the left side -B- .

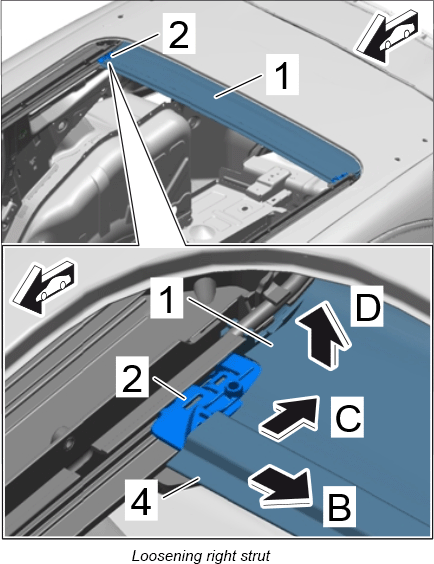

- 1.3. On the opposite side, push the aluminum section -4-
towards the rear and off the sun blind slider -2-
(-C-
).
- 1.4. Pull aluminum section -4- completely off the sun blind -1- at the side.

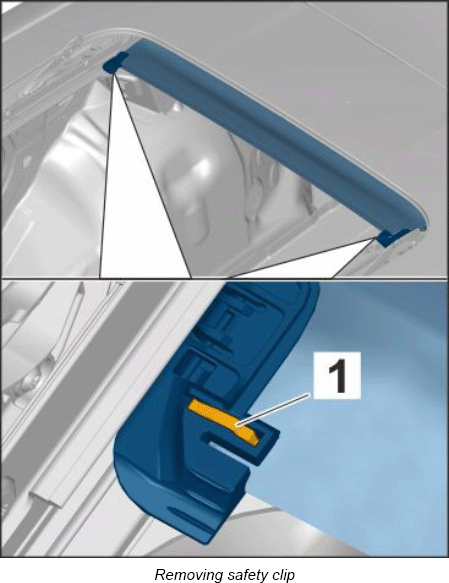

Remove safety clip -1- on the aluminum section.
- 1.1. Press down the locking mechanism -3-
on the left side -A-
.

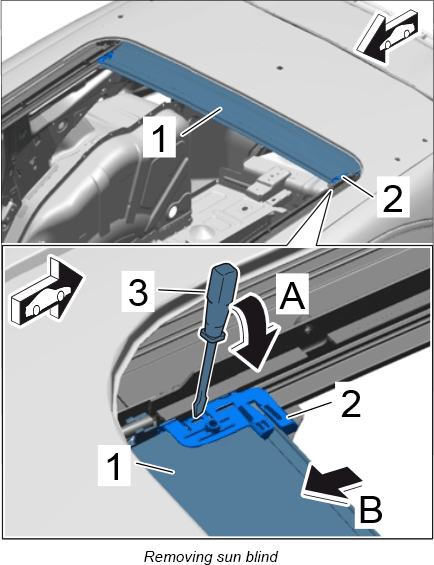

- Carefully lift up the locking hook on the sun blind slider -2-
using a flat screwdriver -3-
(-A-
) and remove the sun blind -1-
together with the driver -4-
from the sun blind slider -2-
by pulling it towards the rear -B-
.

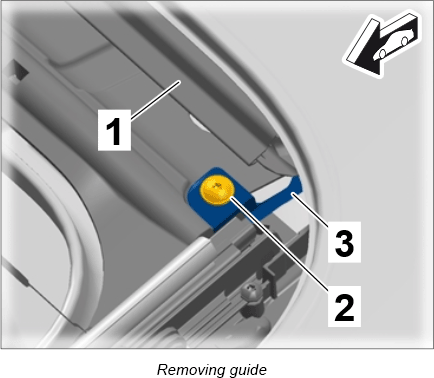

- Unscrew and remove fastening screw -2-
for the sun blind -1-
on the sun blind slider -3-
.
Loosen barbed hook and press fabric centering element to the rear until the fabric centering element can be lifted.
- Loosen fastening screws on panorama roof frame as far as the middle.

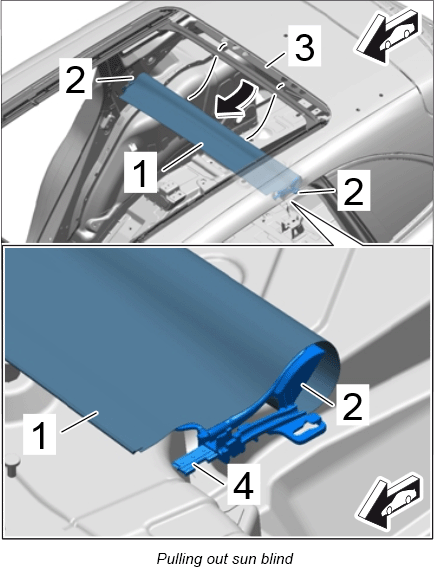

- Pull the sun blind -1- complete with the sun blind holders -2- and drivers -4- out of the sun blind module -3- .
