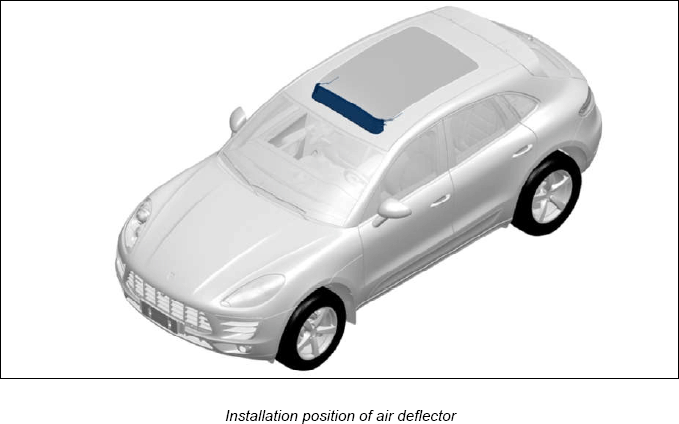

Removing air deflector

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

1. Open the front glass panel fully.

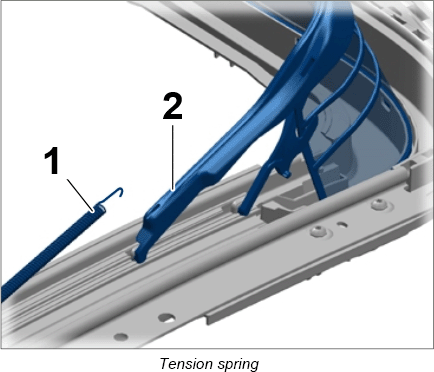

2. Disengage tension spring -1-  for air deflector -2-  at the left and right.

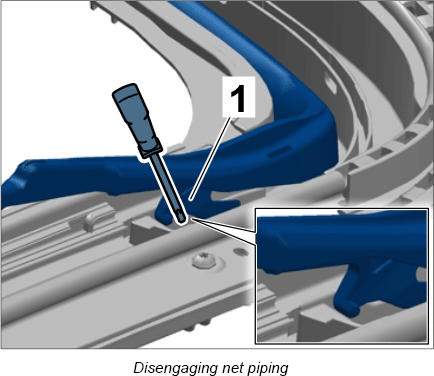

3. Carefully unclip net piping -1-  from the clamping strip, starting at the sides.

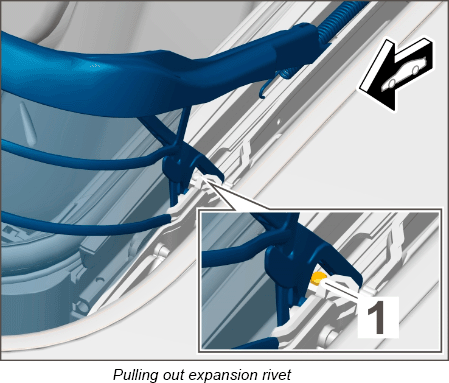

4. Pull expansion rivet -1-  out of the guide using a pointed-nose pliers.

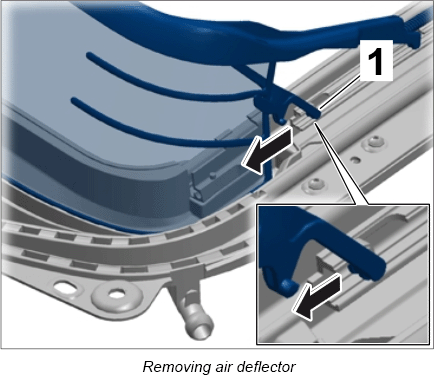

5. Pull knock-out lever -1-  for air deflector forward out of the guide rail.
6. Remove air deflector.
