Installing roof assembly (panorama roof)

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

1. Installation is performed in reverse order to removal.
2. Place the roof assembly in installation position.
   1. 2.1. Guide the roof assembly through the rear lid opening into the passenger compartment with the help of another person.
   2. 2.2. Press the roof assembly up and position it.
   3. 2.3. Screw in fastening screws so that the roof assembly can still be moved slightly.
   4. 2.4. Move the roof assembly until the locating bores are free.

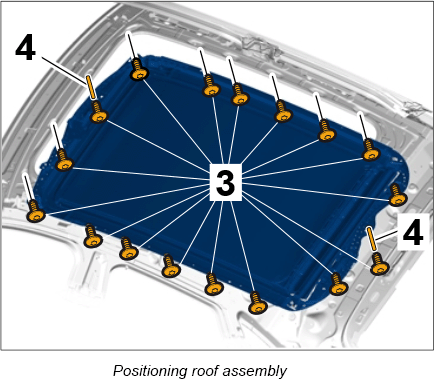

   5. 2.5. Secure the roof assembly at the locating bores -4-  using the punches Diameter 10 mm  .
3. Check that the outer seal is positioned correctly.
4. Secure the roof assembly.

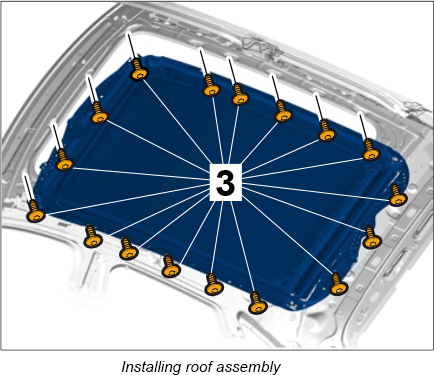

   1. 4.1. Tighten fastening screws -3-  from front to rear in alternating sequence at the left and right to Tightening torque 8 Nm (6 ft lb.)  until secure.
   2. 4.2. Remove the punches -4-  from the roof assembly.

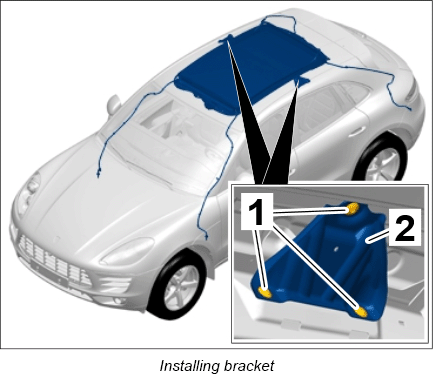

   3. 4.3. Screw in fastening screws -1-  on the brackets -2-  and tighten to Tightening torque 8 Nm (6 ft lb.)  until secure.
