Removing tailgate trim panel

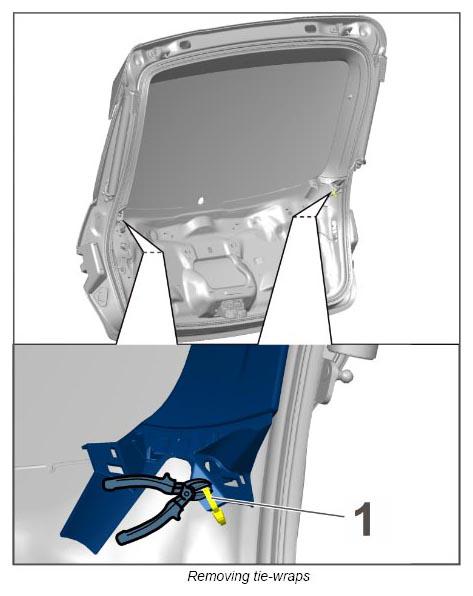

G12890451Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cut tie-wrap -1-  and remove it.

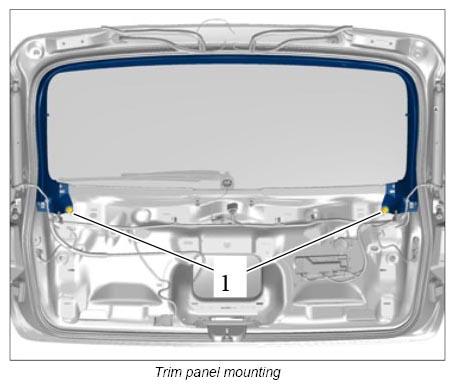

    G12890452Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew and remove fastening screws -1-  at the left and right.

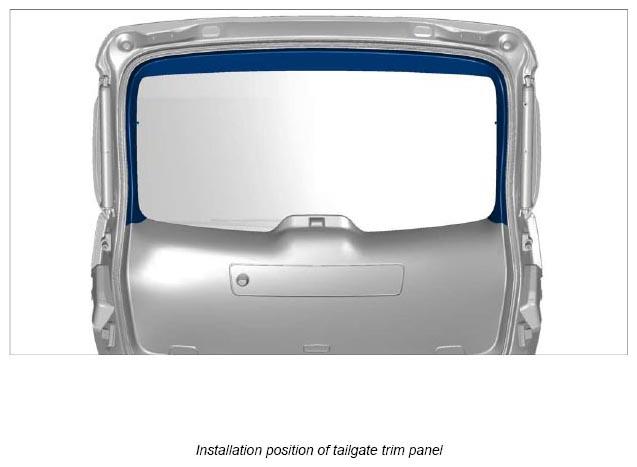

    G12890453Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Carefully unclip trim panel at the positions shown using a suitable tool.

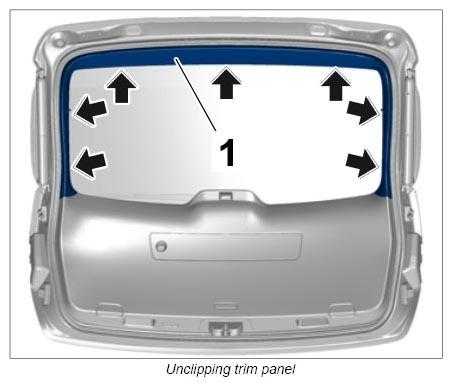

    G12890454Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove trim panel.
