Removing trim panel for luggage compartment (luggage compartment cover) at the sides

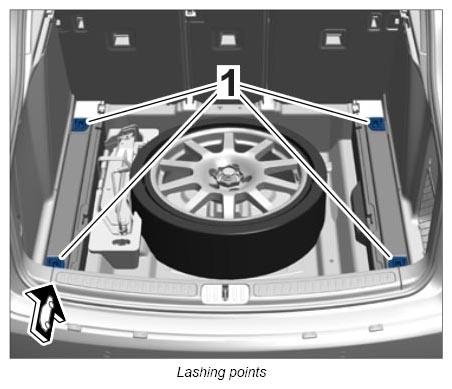

  1. Fold up the tabs at the lashing points and unscrew and remove fastening screws -1-  .
    G12890351Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove lashing points by pulling them up.

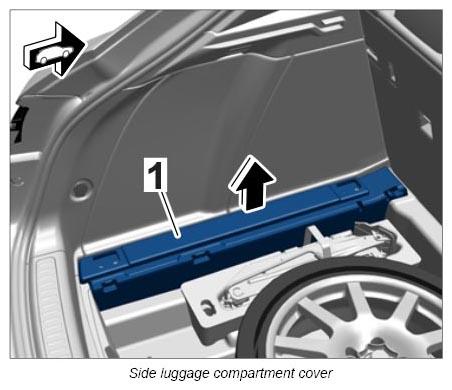

  3. Remove side luggage compartment cover -1 -  by pulling it up out of the bracket.
    G12890352Courtesy of PORSCHE CARS NORTH AMERICA, INC.
