Removing center console trim

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
• Some steps must be carried out automatically  .
• Some of the repair illustrations show only one side of the vehicle  .

1. Move front seats to the rearmost position.

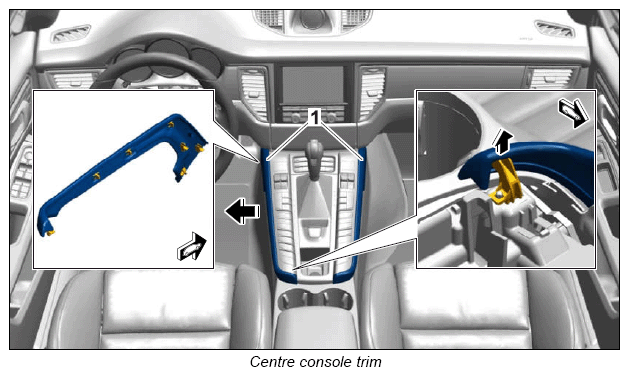

2. Pull up trim -1-  in the rear area and unclip it on the center console.
3. Unclip and remove trim -1-  at the side of the center console.
