Subsequent work

  1. Install shock absorber fork. → 408919 REMOVING AND INSTALLING SHOCK ABSORBER FORKS .
  2. Install additional reinforcement on dome strut → 408619 REMOVING AND INSTALLING FRONT STRUT (DOME STRUT) .
  3. Install front trim panel → 700219 REMOVING AND INSTALLING FRONT TRIM PANEL .

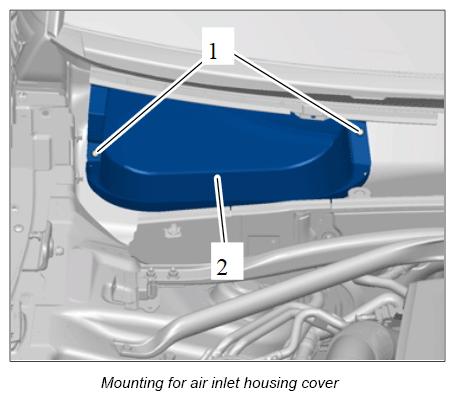

  4. Fit air inlet housing cover -2-  and tighten fastening screws -1-  .
    G12834580Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Install cowl panel cover → 508719 REMOVING AND INSTALLING COWL PANEL COVER .
  6. Fit wheel → 440519 REMOVING AND INSTALLING WHEEL .
  7. Perform suspension alignment. → 449503 SUSPENSION ALIGNMENT, COMPLETE .
