Topping up oil for transfer gear

Information

Use only oil approved by Porsche.

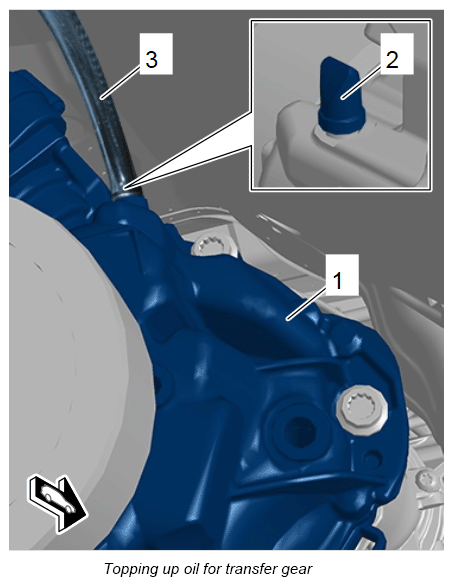

1. Fill 500 ml  . of oil into the transfer gear -1 -  .
   1. 1.1. Remove protection cap on breather adapter -2-  .
   2. 1.2. Connect hose -3-  of the transmission fluid filler pump set WE 1372/ATF  to the breather adapter.
   3. 1.3. Fill in oil slowly and evenly using the filler pump.
   4. 1.4. Disconnect hose -3-  and fit protection cap on the breather adapter -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

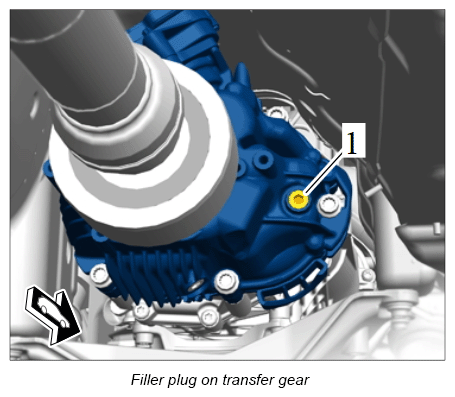

2. Fit and tighten new inspection and filler plug -1-  .

   Tightening torque 20 Nm (15 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
