Technical values
TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Upper trailing arm to wheel bearing housing | M10 thread | Tightening torque | 45 Nm (33 ft. lb.) | ||
| Mounting saddle to spring strut (PASM only) | M8 thread | Tightening torque | 30 Nm (22 ft. lb.) | ||
| Mounting saddle to body | M10 x 35 thread/observe tightening sequence/always use new screws or bolts following removal | Initial tightening | 40 Nm (30 ft. lb.) | ||
| Mounting saddle to body | M10 x 35 thread/observe tightening sequence/always use new screws or bolts following removal | Final tightening | +90° | ||
| Distance from PASM connector holder to coil spring mounting | Permitted minimum distance | Length | 66 mm | ||
| Distance from PASM connector holder to coil spring mounting | Permitted maximum distance | Length | 69 mm | ||
| Pushing PASM line into retaining clip | Length | 12.5 mm | +/-2.5 mm | ||
|

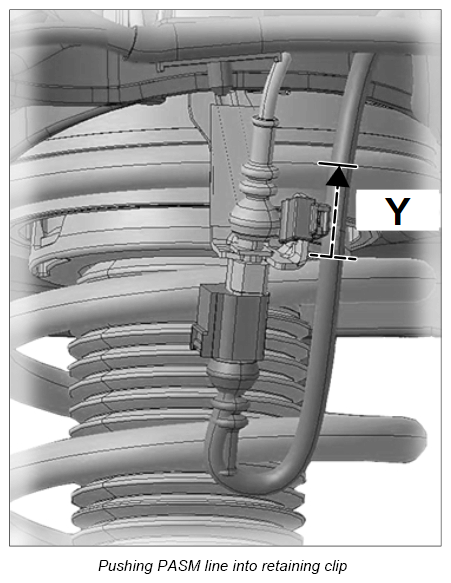

Pushing PASM line into retaining clip |
|||||
