Setting Self-Tapping Screws

Fig 1: Identifying Hole Geometry

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

De-burr all bore holes.
Prepare bonding surfaces and bond body parts. → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE
Align and secure body parts.
Screw on body parts using a special screw.

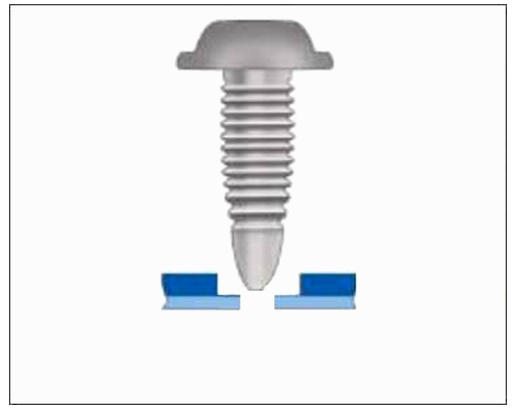

1. 8.1. Fit screw.

  Fig 2: Fitting Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 8.2. Shape the cylindrical extrusion by screwing in at high speed (> 1, 000 RPM). Cordless drill CXS 10 Li 1.3 set WE 1448

  Fig 3: Identifying Shape Cylindrical Extrusion
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

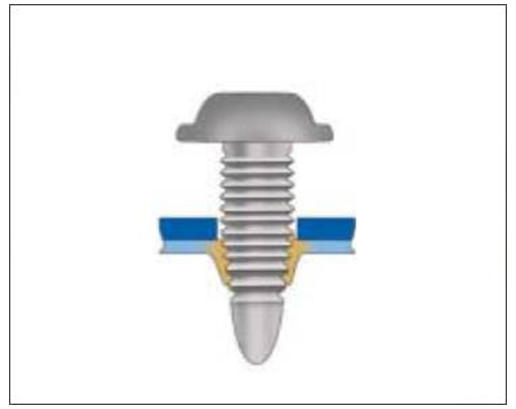

3. 8.3. Groove the metric thread without tension.

  Fig 4: Identifying Groove Thread
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

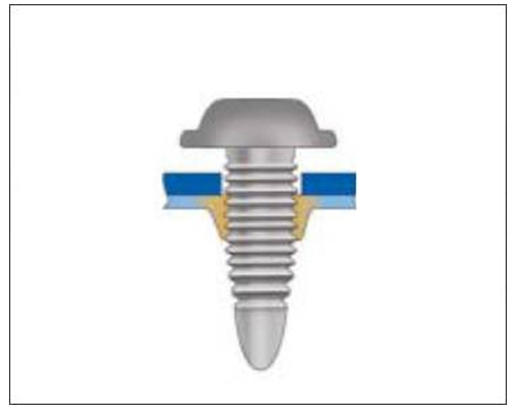

4. 8.4. Continue to screw in at low speed (< 100 RPM).

  Fig 5: Identifying Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  If the prescribed torque is not reached when screwing in screws (screw does not tighten securely), the next size screw must be used.

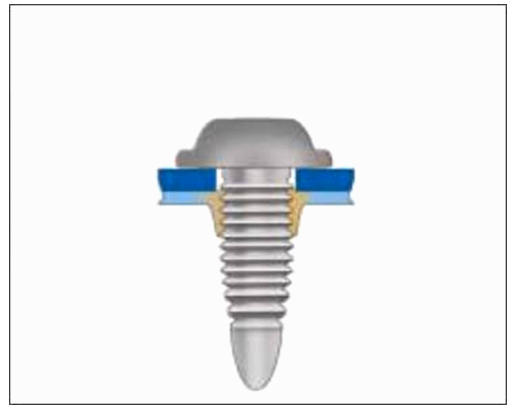

5. 8.5. Tighten the screw to the prescribed torque.

  Fig 6: Tightening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
