Seam Seals

Information

Smooth off seam seal with a spatula after applying it to the marked areas.

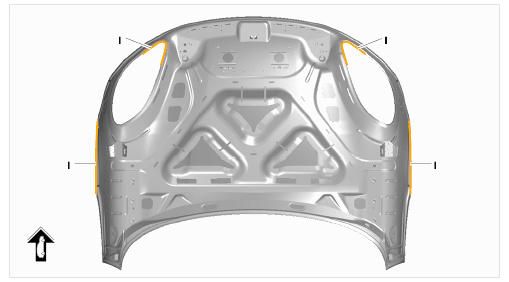

1. Coat area -I-  with body sealant.
   Fig 1: Identifying Front Flap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

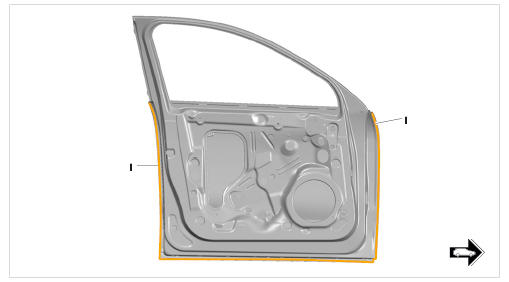

2. Apply body sealing compound in area -I-  .
   Fig 2: Identifying Front Door

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

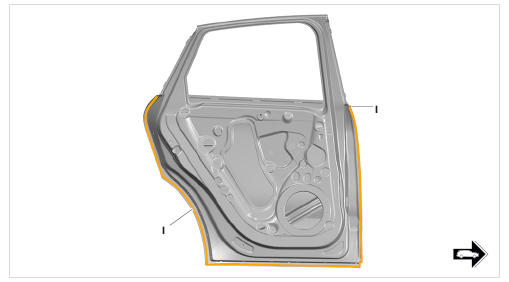

3. Apply body sealing compound in area -I-  .
   Fig 3: Identifying Rear Door

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

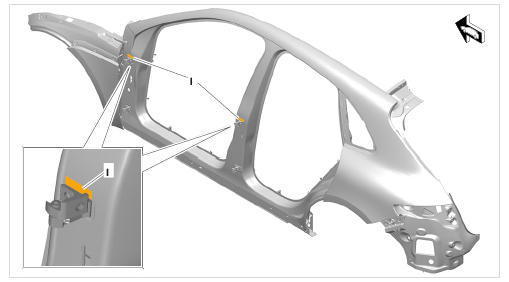

4. Apply body sealing compound in area -I-  .
   Fig 4: Identifying Front And Rear Door Hinges

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

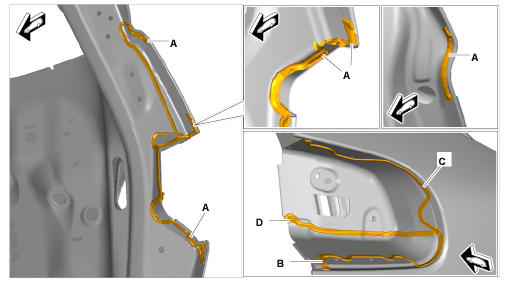

5. Seal fresh cut in area -A-  with body sealing compound.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

   1. 5.1. Apply body sealing compound in area -B;C & D-  .
      Fig 5: Identifying Rear Side Section Applying Area

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

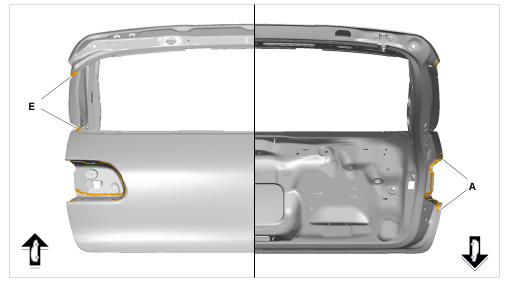

6. Seal fresh cut in area -E-  with body sealant → BODY SEALANT 000.043.303.60 and smooth it off.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

   1. 6.1. Coat area -A-  with body sealant.
      Fig 6: Identifying Tailgate Coating Area

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

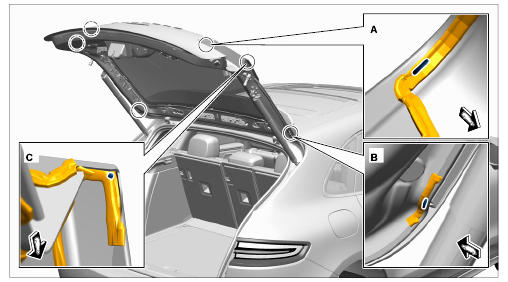

      If the sealing specifications are not observed, there is a higher risk of water leaking in  at the tailgate. The following overview shows the positions on the rear lid -A, B, C-  at which additional sealing measures are required.

      Fig 7: Positioning Rear Lid Area

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Information

      Smooth off seam seal with a spatula after applying it to the marked areas.

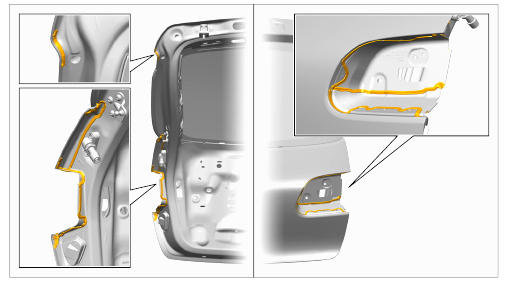

7. Coat the areas of the rear lid shown with body sealant → BODY SEALANT 000.043.207.67.
   Fig 8: Identifying Seam Seals On Rear Lid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

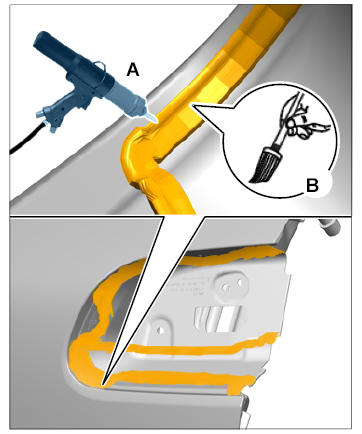

8. Rework the rear lid at certain points on the cut-out for the tail light.
   Fig 9: Applying Sealing Compound

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 8.1. Apply body sealant → BODY SEALANT 000.043.303.60 as shown as an example and spread it out evenly.
   2. 8.2. Spread the body sealant → BODY SEALANT 000.043.303.60 towards the edges in order to guarantee leak-tightness. Smooth out even the smallest holes.
9. A leak test must be carried out on the rear lid after applying the seam seal. To do this, follow the instructions for carrying out the leak test in the document → WE9000 WE90 Workshop campaign - Checking rear lid and reworking it if necessary  .

   Information

   Smooth off seam seal with a spatula after applying it to the marked areas.

10. Coat area -I-  with body sealant.
    Fig 10: Identifying Body Front Section

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Area -I-  overlapping emerging adhesive.
    Fig 11: Identifying Front Flap Hinge Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

12. Apply body sealing compound in area -I-  .
    Fig 12: Applying Body Sealing Compound Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

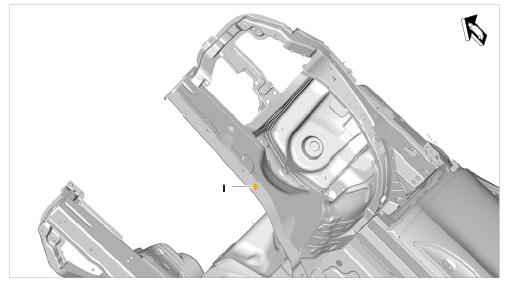

13. Apply body sealing compound in area -I-  .
    Fig 13: Identifying Front Wheel Housing

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

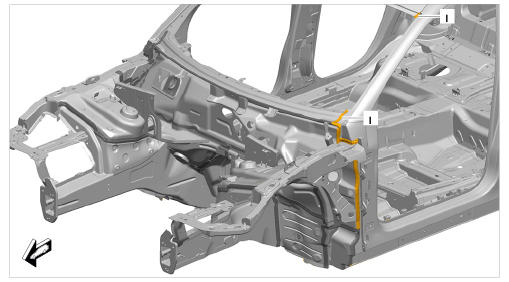

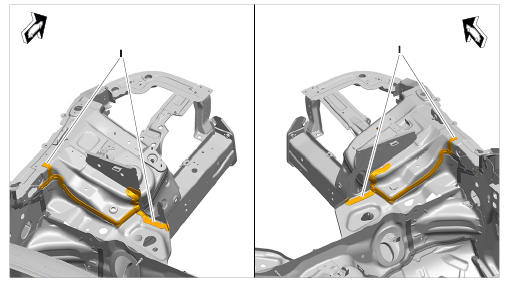

14. Apply body sealing compound in area -I-  .

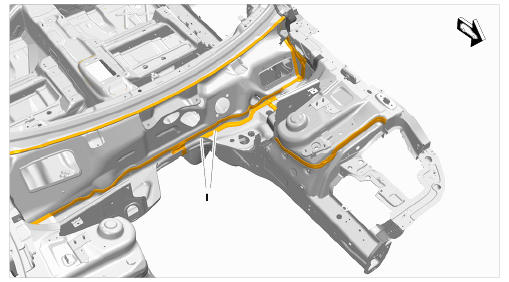

    Fig 14: Identifying Front Plenum Panel Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

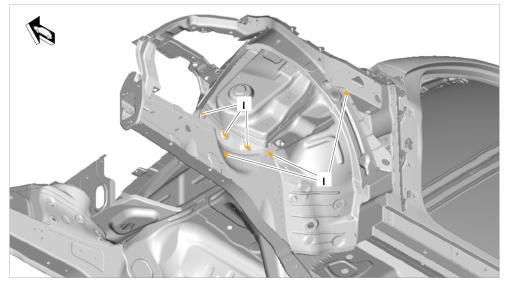

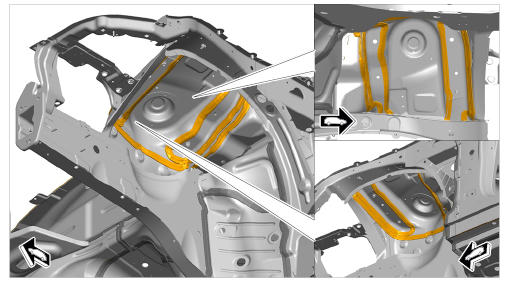

    Fig 15: Identifying Front Spring Strut Mount

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

15. Apply body sealing compound in area -I-  .

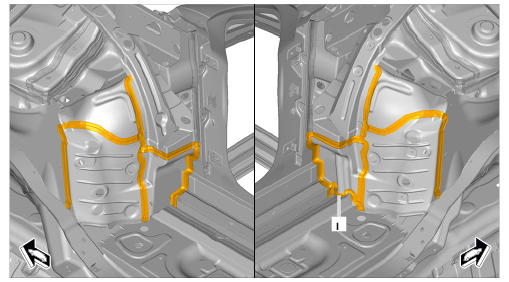

    Fig 16: Identifying Front Wheel Housing Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

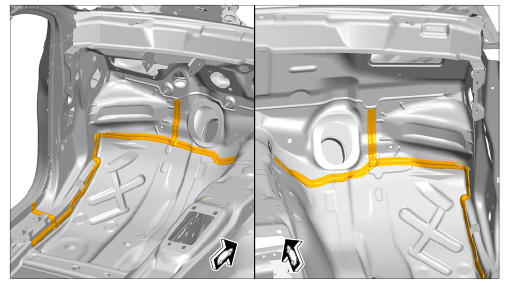

    Fig 17: Identifying Inner Floorpan

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

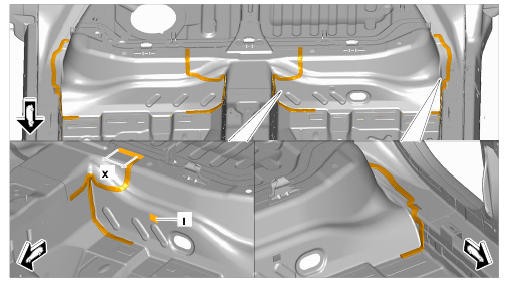

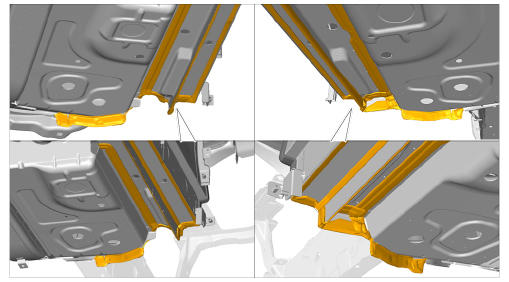

16. Apply body sealing compound in area -I-  .
    1. 16.1. Area -X-  overlapping bonded seam. → Distance: 50 mm

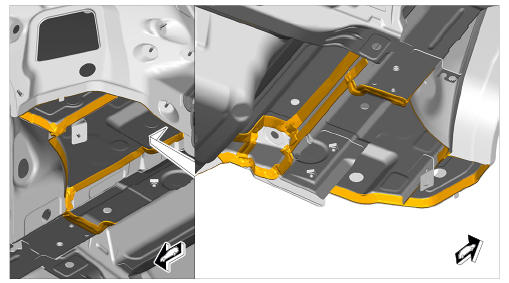

       Fig 18: Identifying Inner Rear Side Member And Tunnel Area

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

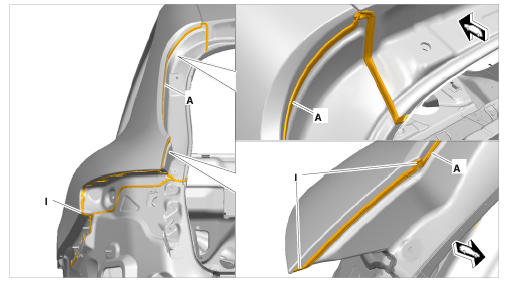

17. Seal fresh cut in area -I-  with body sealing compound and smooth off.
    1. 17.1. Area -A-  - visible seam.
       Fig 19: Identifying Rear Water Drain And Tail Light Area

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Information

       Smooth off seam seal with a spatula after applying it to the marked areas.

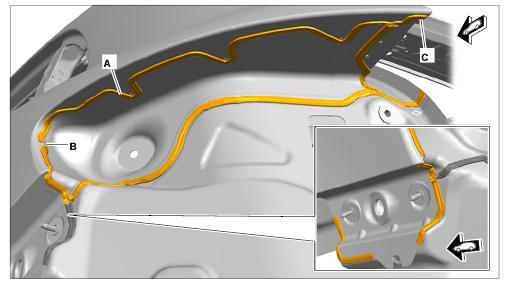

18. Apply body sealing compound in area -A;B-  .
    1. 18.1. Seal fresh cut in area -C-  with body sealing compound and smooth off.
       Fig 20: Identifying Tail Light Cut Area

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

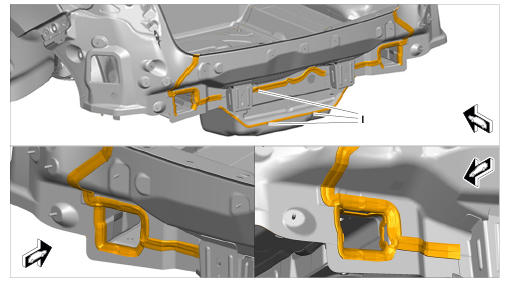

19. Seal off drain seams in area -I-  .
    Fig 21: Identifying Rear Closing Panel Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

20. Apply body sealing compound in area -I-  .
    Fig 22: Identifying Front Side Member

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

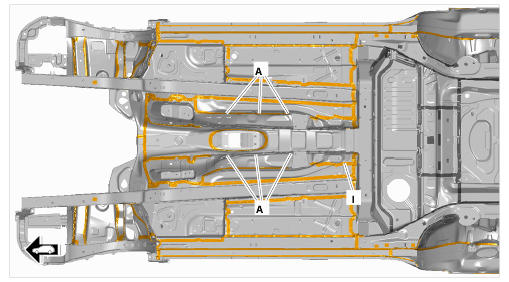

21. Keep drain seams clear in area -A-  .

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 21.1. Apply body sealing compound in area -I-  .
       Fig 23: Identifying Underbody Sealing Compound Area

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
       Fig 24: Identifying Side Member Closing Element

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

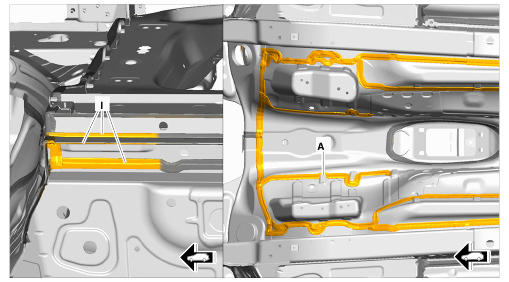

22. Keep drain seams clear in area -A-  .

    Information

    Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 22.1. Apply body sealing compound in area -I-  .

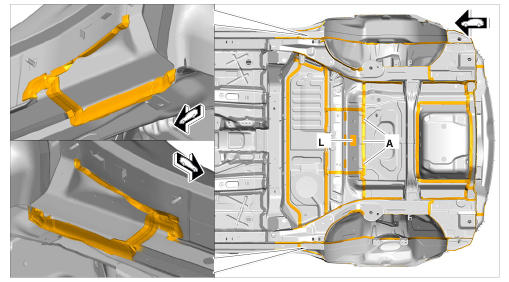

23. Close off drain seams in area -A-  .

    Information

    Fig 25: Identifying Front Tunnel Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Smooth off seam seal with a spatula after applying it to the marked areas.

    1. 23.1. Apply body sealing compound in area -L-  .

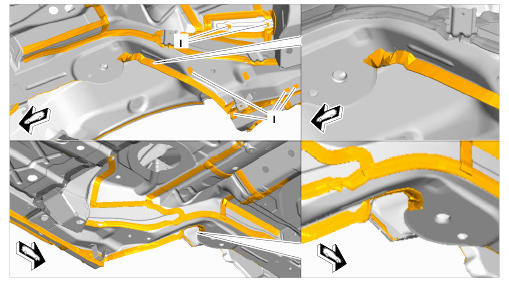

       Fig 26: Identifying Rear End And Side Member Area

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Information

       Smooth off seam seal with a spatula after applying it to the marked areas.

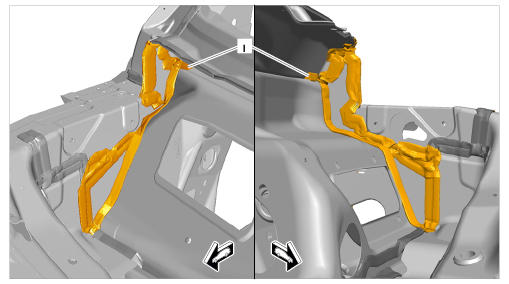

24. Apply body sealing compound in area -I-  .
    Fig 27: Identifying Rear Side And Cross Member Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 28: Identifying Rear Corner Panel And Side Member Area

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
25. Remove body sealing compound in area -A-  .

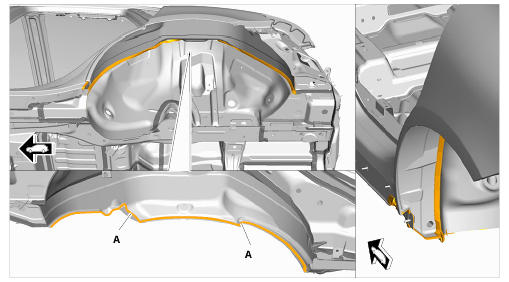

    Fig 29: Removing Rear Wheel Housing

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

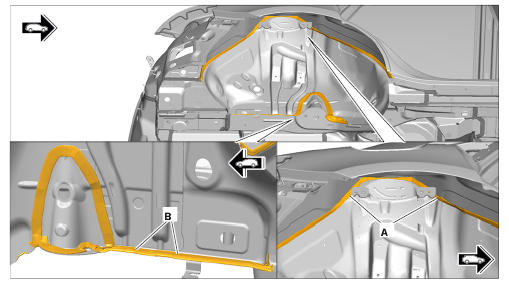

26. Keep drain seams clear in area -B-  .
    1. 26.1. Area -A-  overlapping bonded seam.
       Fig 30: Removing Inner Rear Wheel Housing And Spring Strut Mount

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
