Sealing Elements

Information

• Sealing elements are either bonded or filled with foam filler depending on the repair area.

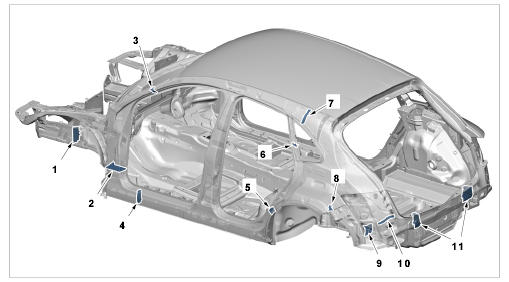

  Fig 1: Overview Of Sealing Elements

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Sealing element for front side member
  2. Sealing element for bottom of A-pillar reinforcement
  3. Sealing element for top of A-pillar reinforcement
  4. Sealing element for side member reinforcement
  5. Sealing element for bottom of C-pillar reinforcement
  6. Sealing element for top of C-pillar reinforcement
  7. Sealing element for roof pillar
  8. Sealing element for rear side section
  9. Sealing element for rear side member
  10. Sealing element for D-pillar reinforcement
  11. Sealing elements for rear end panel
