Technical Values

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

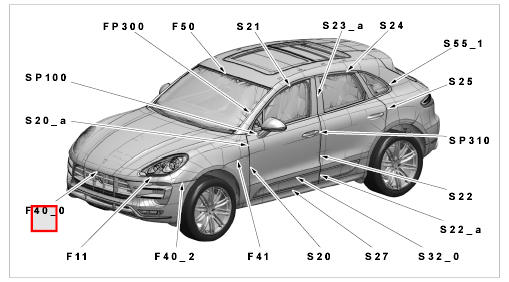

Mirror to door		Gap dimension	1.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Strip to pillar		Gap dimension	-0.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Windscreen to roof		Gap dimension	3.2 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Strip to side panel		Gap dimension	4.5 mm	+/-2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Trim, front to rear		Gap dimension	4.2 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Strip to side panel		Gap dimension	4.5 mm	+/-2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Strip to side panel		Gap dimension	3.8 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear door to side panel		Gap dimension	3.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Handle to front door		Gap dimension	1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear door to front door		Gap dimension	4.2 mm	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Trim, front to rear		Gap dimension	4.2 mm	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

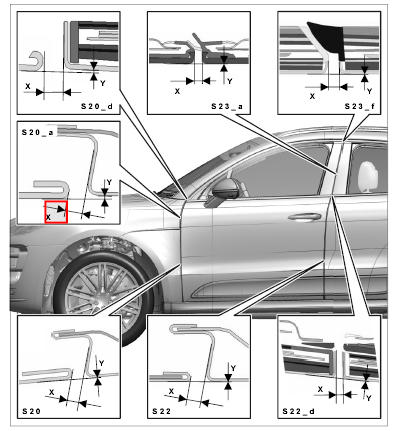

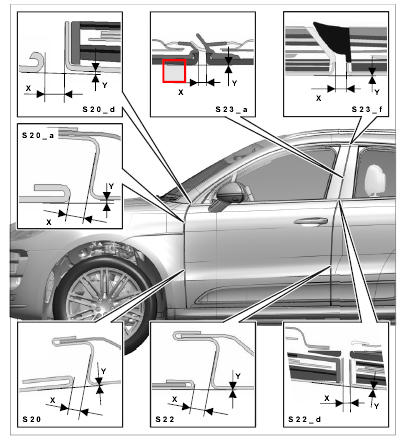

Trim to door		Gap dimension	1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

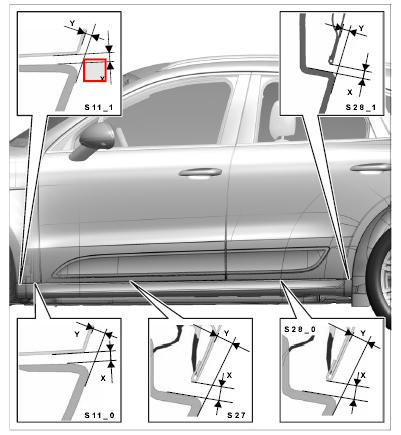

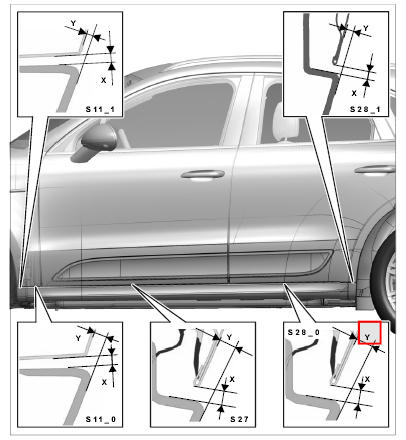

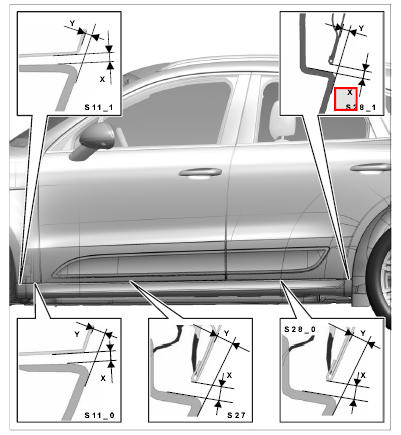

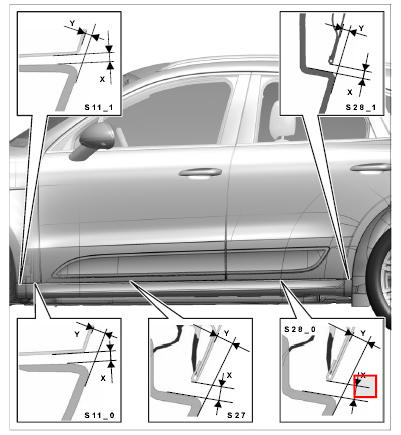

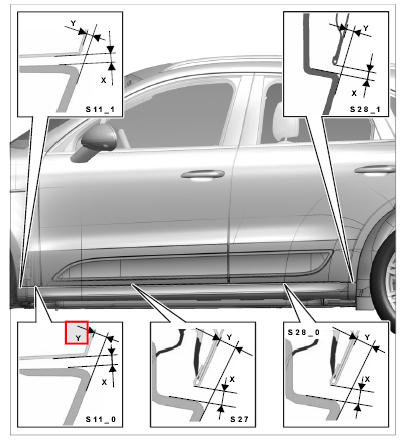

Door sill to door		Gap dimension	4 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Door to wing		Gap dimension	4.1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Front lid to wing		Gap dimension	3.5 mm	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Front lid to front apron		Gap dimension	3.5 mm	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Headlight to front lid		Gap dimension	4.7 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Front lid to front apron		Gap dimension	4.8 mm	+1 mm	-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Door to front lid		Gap dimension	4.1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Light to side panel		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear lid to side panel		Gap dimension	4 mm	+0.7 mm	-0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Spoiler to side panel		Gap dimension	4 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Spoiler to side panel		Gap dimension	6 mm	+1 mm	-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

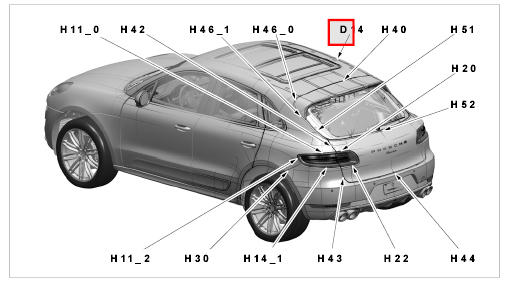

Roof to side panel		Gap dimension	-3 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Spoiler to roof		Gap dimension	6 mm	+1 mm	-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear window to side panel		Gap dimension	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

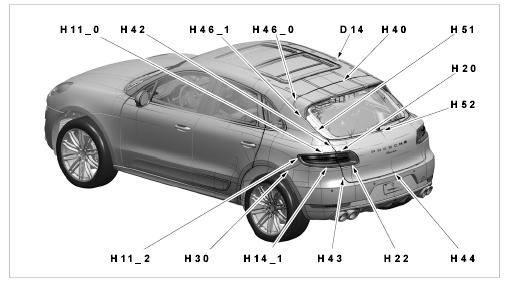

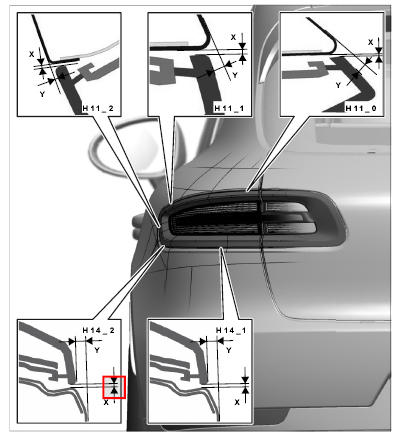

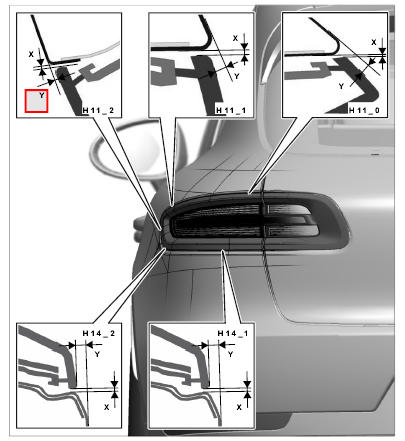

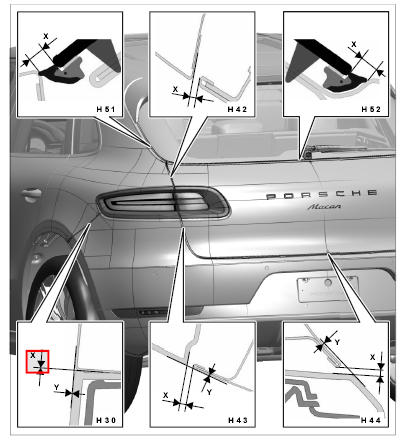

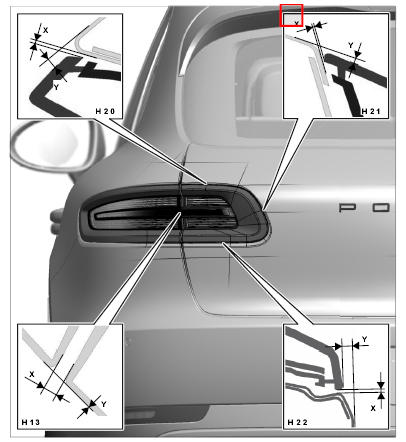

Tail light to rear lid		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear window to rear lid		Fugenmas	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear lid to rear apron		Gap dimension	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Light to rear lid		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear lid to rear apron		Gap dimension	4 mm	+0.7 mm	-0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to rear apron		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear apron to side panel		Gap dimension	0 mm	+0.5 mm	-0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to side panel		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

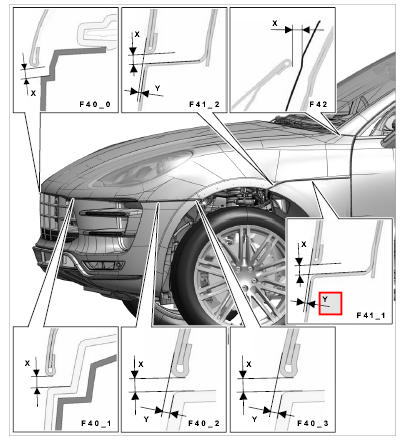

Front lid to front apron (x)		Gap dimension	4.8 mm	+1 mm	-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (x)		Gap dimension	4.8 mm	+1 mm	-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (x)		Gap dimension	3.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (y)		Gap dimension	1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (x)		Gap dimension	3.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (y)		Gap dimension	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (x)		Gap dimension	3.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (y)		Gap dimension	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (x)		Gap dimension	3.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (y)		Gap dimension	1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to side panel (x)		Gap dimension	4.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section

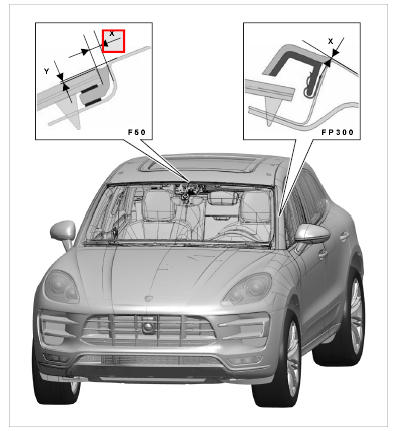

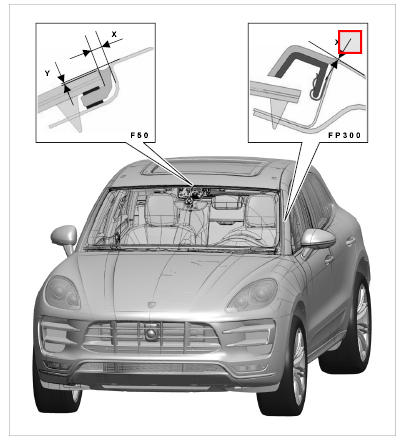

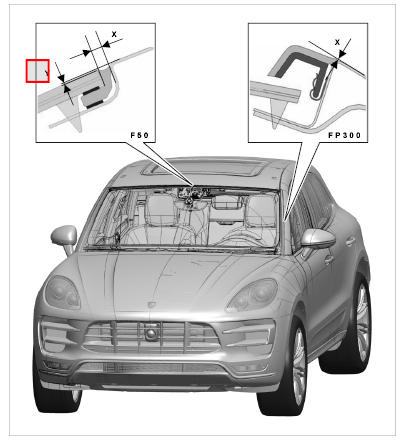

Windscreen to roof (x)		Gap dimension	3.2 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for windscreen
Windscreen to roof (y)		Gap dimension	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for windscreen
Water drain strip to side panel (x)		Gap dimension	0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for windscreen

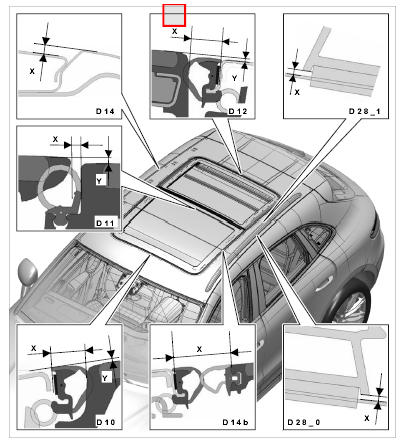

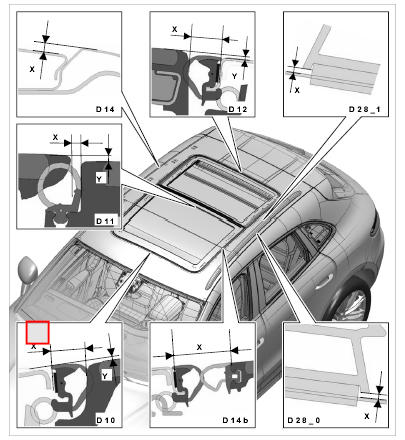

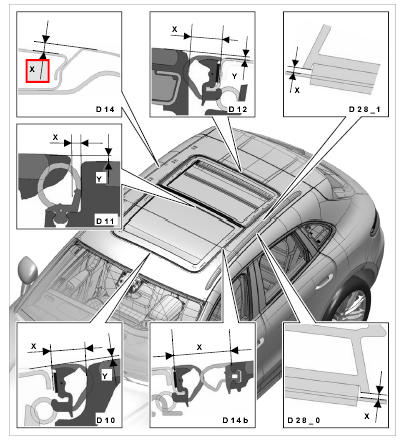

Panoramic sliding roof to roof, front (x)		Gap dimension	10 mm	+/-1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, front (y)		Gap dimension	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof part 1 to part 2 (x)		Gap dimension	2 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof part 1 to part 2 (y)		Gap dimension	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, rear (x)		Gap dimension	10 mm	+/-1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, rear (y)		Gap dimension	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Roof to side panel (x)		Gap dimension	3 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, sides (x)		Gap dimension	22 mm	+/-1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Roof rail to roof, outer (x)		Gap dimension	1.5 mm	+/-0.75 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Roof rail to roof, inner (x)		Gap dimension	1.5 mm	+/-0.7 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof

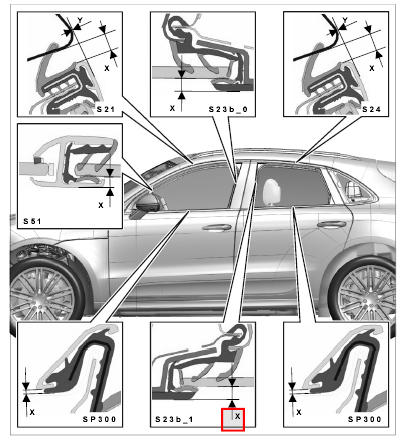

Door molding, rear to front (x)		Gap dimension	4.2 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door molding, rear to front (y)		Gap dimension	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
B-pillar trim, rear to front (x)		Gap dimension	4.2 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
B-pillar trim, rear to front (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door molding, top rear to front (x)		Gap dimension	4.2 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door molding, top rear to front (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door

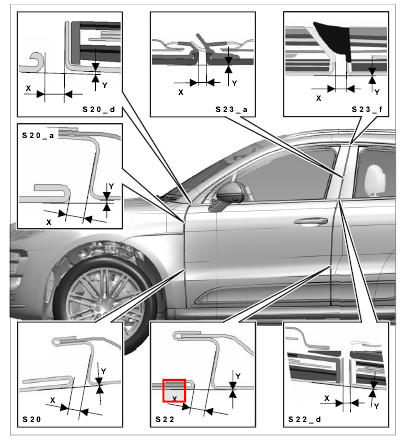

Door to front lid (x)		Gap dimension	4.1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door to front lid (y)		Gap dimension	1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door to wing (x)		Gap dimension	4.1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door to wing (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Rear door to front door (x)		Gap dimension	4.2 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Rear door to front door (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door molding, rear to front (x)		Gap dimension	4.2 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door molding, rear to front (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door

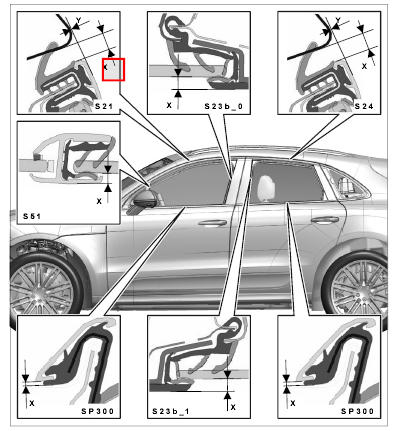

Door molding, top to side panel (x)		Gap dimension	4.5 mm	+/-2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door

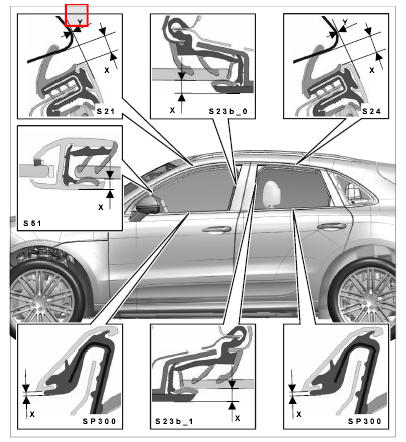

Door molding, top to side panel (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door

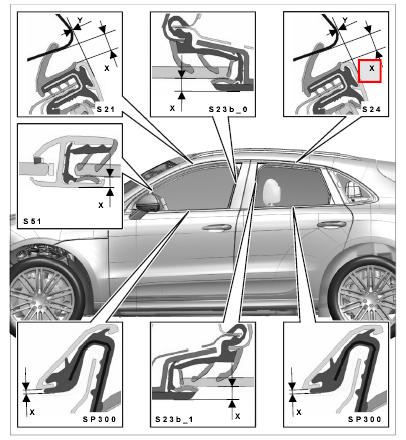

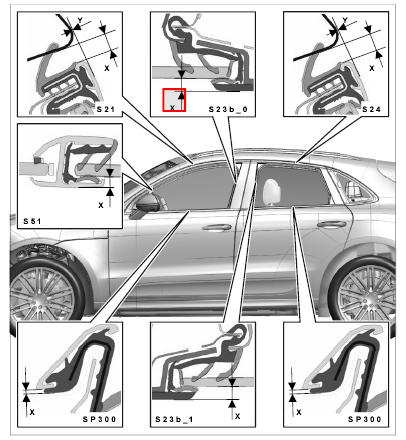

B-pillar trim, front to glazing (x)		Gap dimension	4.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions of front door to rear door
Door molding, top to side panel (x)		Gap dimension	4.5 mm	+/-2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door

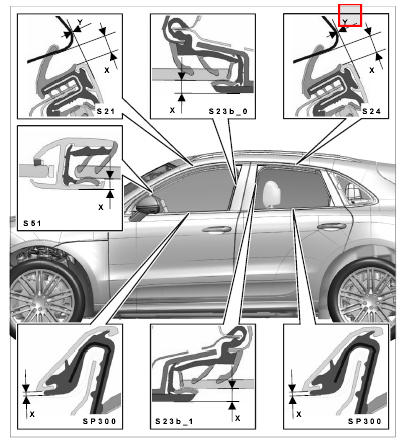

Door molding, top to side panel (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
Triangular window bar to glazing (x)		Gap dimension	4.1 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
Door molding, front to outer door panel (x)		Gap dimension	0.8 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
B-pillar trim, rear to glazing (x)		Gap dimension	4.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door

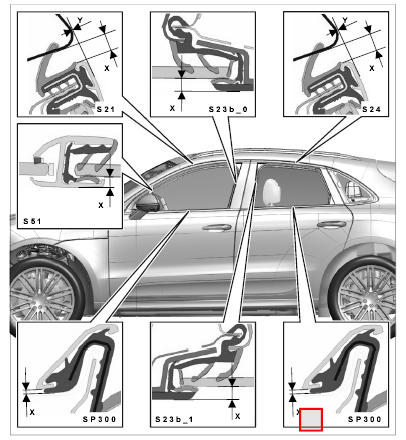

Door molding, rear to outer door panel (x)		Gap dimension	0.8 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door

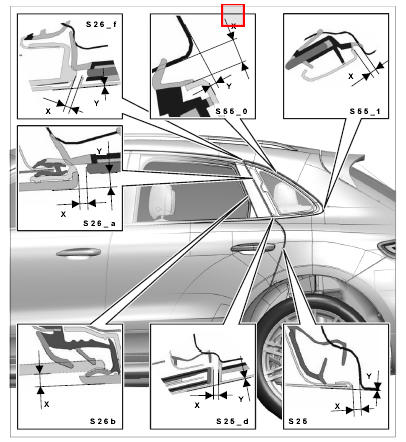

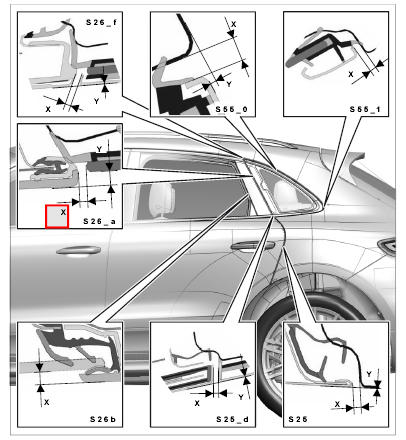

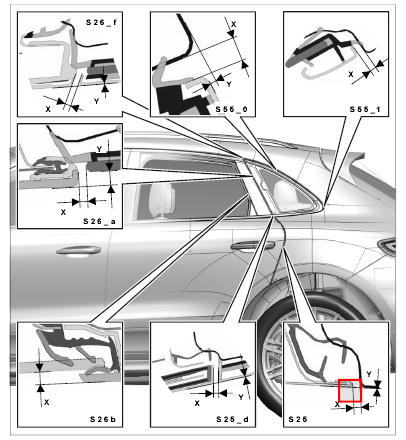

Rear door to side panel (x)		Gap dimension	3.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window

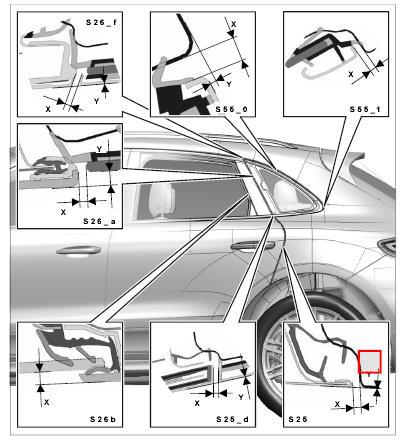

Rear door to side panel (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear door molding to rear window molding (x)		Gap dimension	3.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear door molding to rear window molding (y)		Gap dimension	0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window

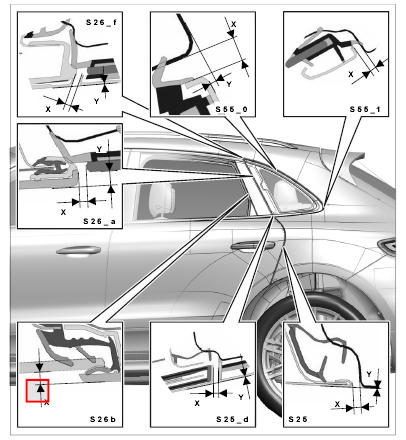

C-pillar trim to door window (x)		Gap dimension	4.6 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
C-pillar trim to rear window (x)		Gap dimension	3.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
C-pillar trim to rear window (y)		Gap dimension	4.2 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Door molding, top to rear window molding (x)		Gap dimension	3.5 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window

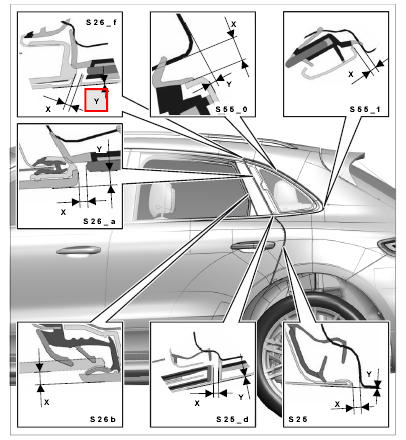

Door molding, top to rear window molding (y)		Gap dimension	0.3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear window molding to side panel (x)		Gap dimension	4.5 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear window molding to side panel (y)		Gap dimension	0.8 mm	+/-1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window

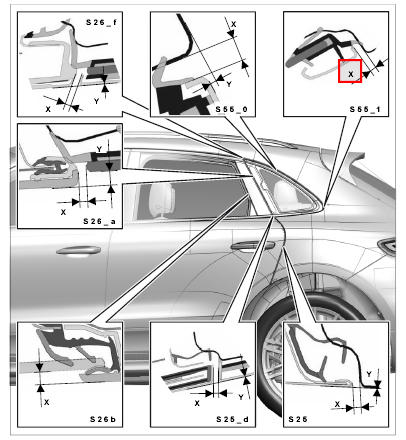

Rear window molding to side panel (x)		Gap dimension	3.8 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Door sill to wing (x)		Gap dimension	4 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to wing (y)		Gap dimension	5 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to wing (x)		Contact force	4 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to wing (y)		Gap dimension	5 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to front door (x)		Gap dimension	4 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to front door (y)		Gap dimension	5 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (x)		Gap dimension	4 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (y)		Gap dimension	5 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (x)		Gap dimension	4 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (y)		Gap dimension	5 mm	+/-1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Filler flap to side panel (x)		Gap dimension	2 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap

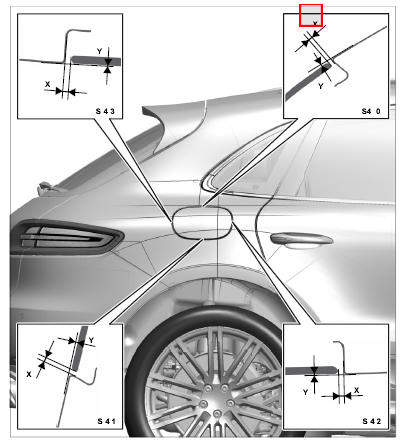

Filler flap to side panel (y)		Gap dimension	0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap
Filler flap to side panel (x)		Gap dimension	2.3 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap
Filler flap to side panel (y)		Gap dimension	0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap
Filler flap to side panel (x)		Gap dimension	2.3 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap
Filler flap to side panel (y)		Gap dimension	0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap
Filler flap to side panel (x)		Gap dimension	2.3 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap
Filler flap to side panel (y)		Gap dimension	-0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler flap
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
SBBR-Leuchte Part 1 to side panel (y)		Gap dimension	-4.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (y)		Gap dimension	-2 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (y)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (x)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (y)		Gap dimension	-3.8 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (x)		Gap dimension	1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (y)		Gap dimension	1 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to part 2 (x)		Gap dimension	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to part 2 (y)		Gap dimension	0 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y)		Gap dimension	-4.5 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y)		Gap dimension	-2 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x)		Gap dimension	1 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y)		Gap dimension	-3.8 mm	+/-0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for tail light
Rear apron to side panel (x)		Gap dimension	0 mm	+0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear apron to side panel (y)		Gap dimension	0 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear lid to side panel (x)		Gap dimension	4 mm	+0.7 mm	-0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear lid to side panel (x)		Gap dimension	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear lid to side panel (y)		Gap dimension	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end

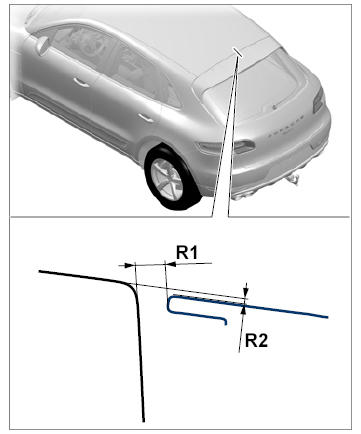

Rear lid/rear spoiler to roof	R1 (gap)	Gap dimension	6 mm	+/-1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler
Rear lid/rear spoiler to roof	R2 (offset)	Gap dimension	-1.5 mm	+/-1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler to roof

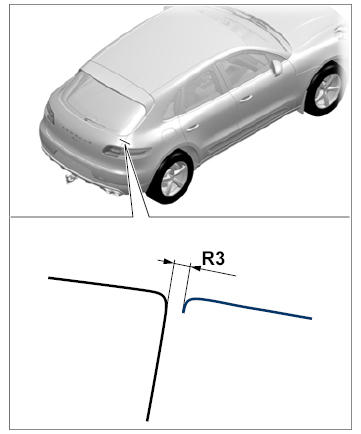

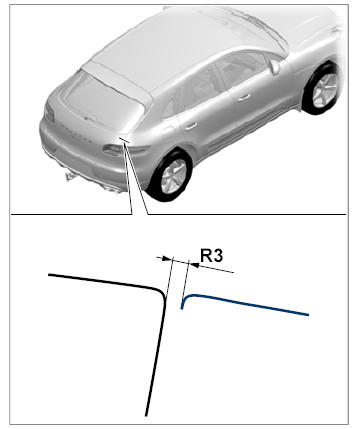

Rear lid to side panel	R3 (gap)	Gap dimension	4 mm	+0.7 mm	-0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel
Rear lid to side panel	R3b (offset)	Gap dimension	0 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel

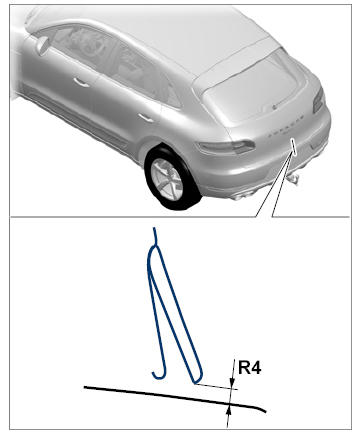

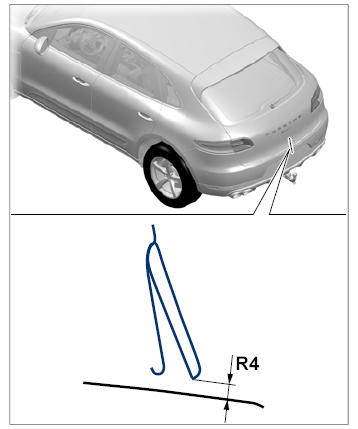

Rear lid to rear apron	R4 (gap)	Gap dimension	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to rear apron

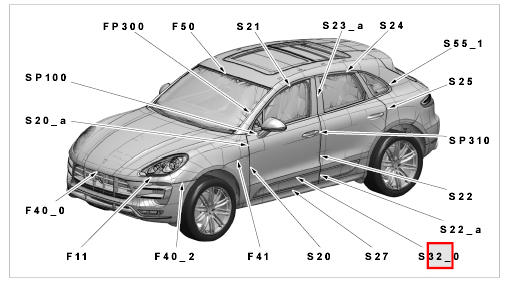

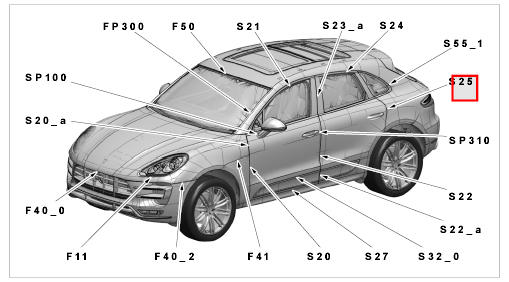

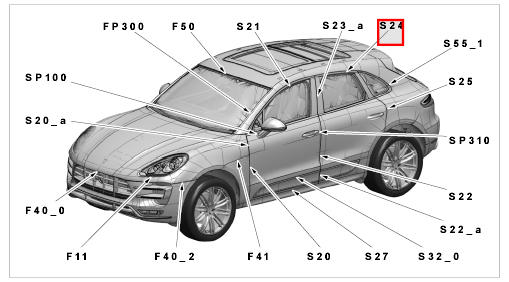

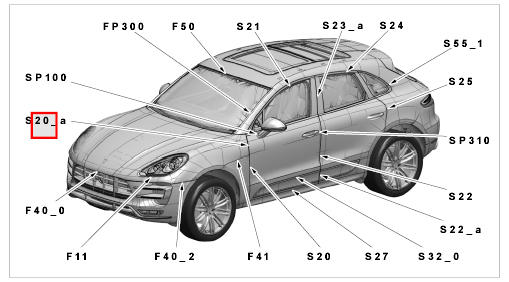

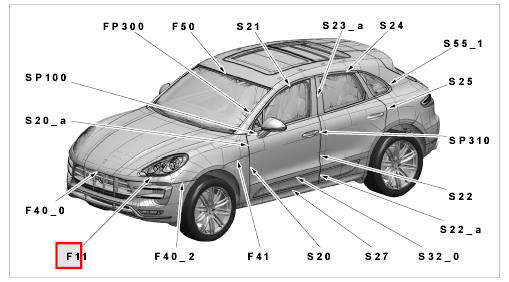

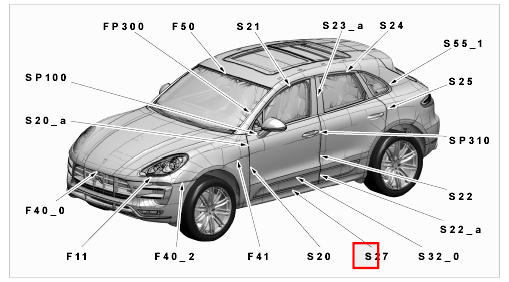

Overview of outer gap dimension for body

SP100 - → Gap dimension: 1.5 mm+/-1 mm

FP300 - → Gap dimension: -0.5 mm+/-0.5 mm

F50 - → Gap dimension: 3.2 mm+/-0.5 mm

S21 - → Gap dimension: 4.5 mm+/-2 mm

S23_a - → Gap dimension: 4.2 mm+/-1 mm

S24 - → Gap dimension: 4.5 mm+/-2 mm

S55_1 - → Gap dimension: 3.8 mm+/-0.8 mm

S25 - → Gap dimension: 3.5 mm+/-0.5 mm

SP310 - → Gap dimension: 1 mm+/-0.5 mm

S22 - → Gap dimension: 4.2 mm0.5 mm

S22_a - → Gap dimension: 4.2 mm1 mm

S32_0 - → Gap dimension: 1 mm+/-0.5 mm

S27 - → Gap dimension: 4 mm+/-1.5 mm

S20 - → Gap dimension: 4.1 mm+/-0.5 mm

F41 - → Gap dimension: 3.5 mm0.5 mm

F40_2 - → Gap dimension: 3.5 mm0.5 mm

F11 - → Gap dimension: 4.7 mm+/-0.8 mm

F40_0 - → Gap dimension: 4.8 mm+1 mm-0.6 mm

S20_a - → Gap dimension: 4.1 mm+/-0.5 mm

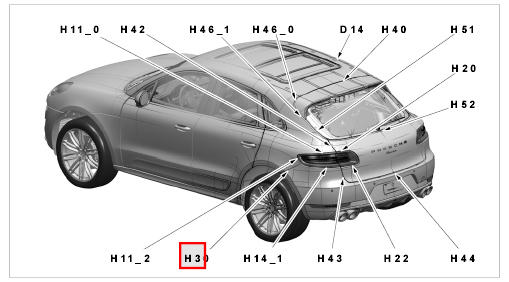

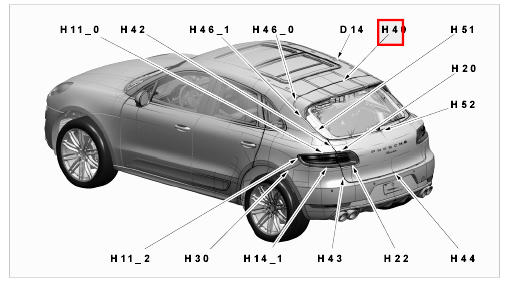

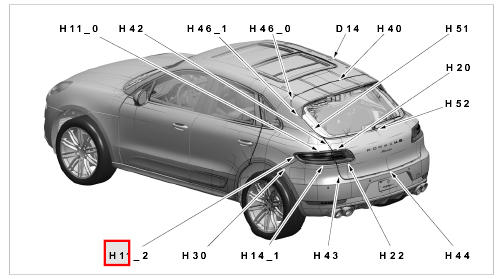

1. Overview of gap dimensions.

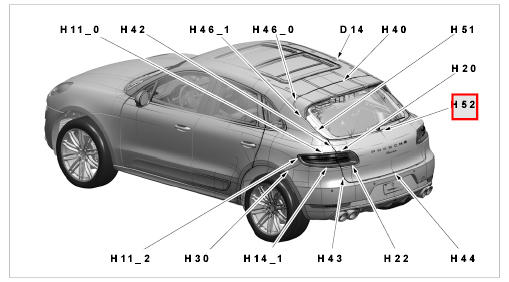

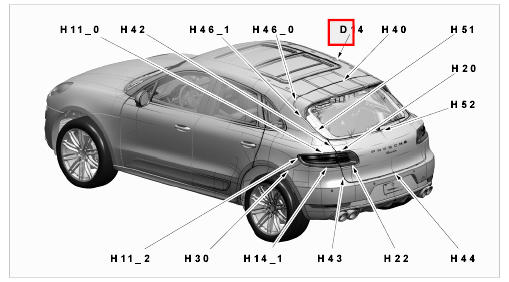

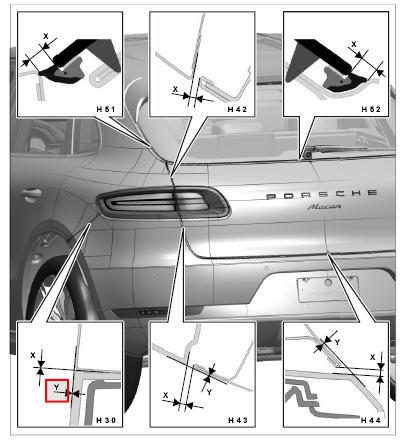

H11_0 - → Gap dimension: 1 mm+/-0.8 mm

H42 - → Gap dimension: 4 mm+0.7 mm-0.9 mm

H46_1 - → Gap dimension: 4 mm+/-0.5 mm

H46_0 - → Gap dimension: 6 mm+1 mm-0.5 mm

D14 - → Gap dimension: -3 mm+/-1 mm

H40 - → Gap dimension: 6 mm+1 mm-0.5 mm

H51 - → Gap dimension: 4 mm+/-0.8 mm

H20 - → Gap dimension: 1 mm+/-0.8 mm

H52 - → Fugenmas: 4 mm+/-0.8 mm

H44 - → Gap dimension: 4 mm+/-0.8 mm

H22 - → Gap dimension: 1 mm+/-0.8 mm

H43 - → Gap dimension: 4 mm+0.7 mm-0.9 mm

H14_1 - → Gap dimension: 1 mm+/-0.8 mm

H30 - → Gap dimension: 0 mm+0.5 mm-0 mm

H11_2 - → Gap dimension: 1 mm+/-0.8 mm

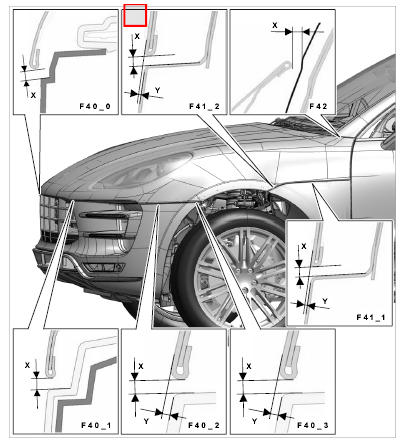

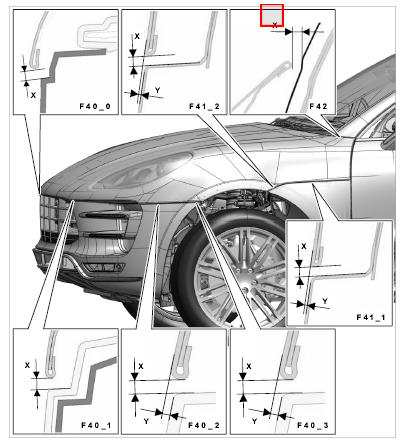

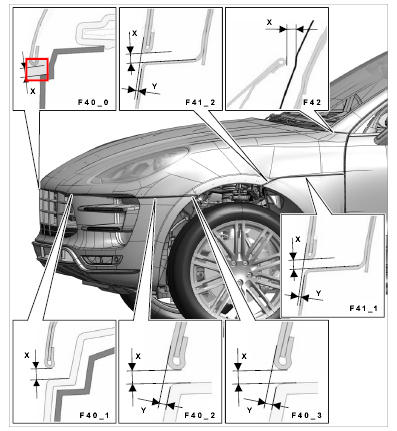

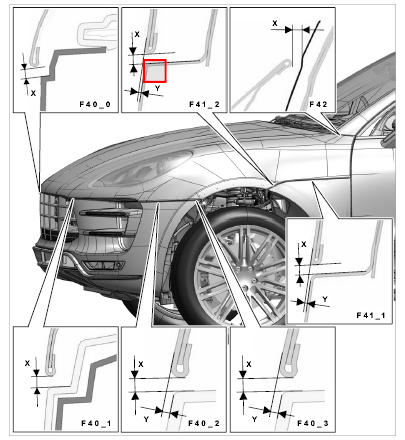

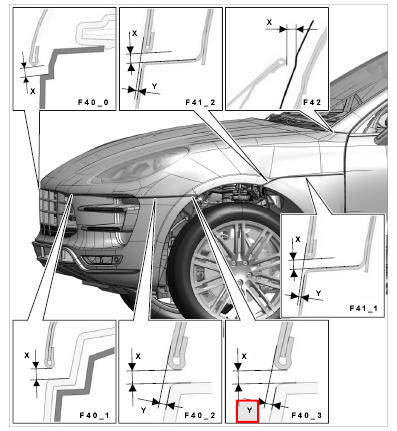

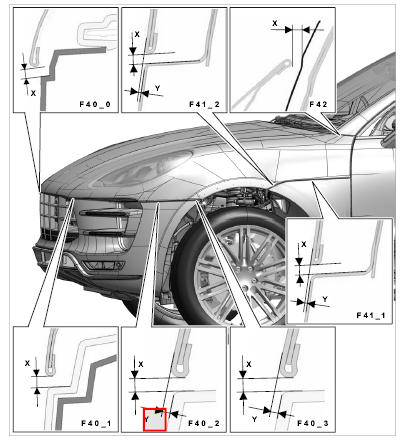

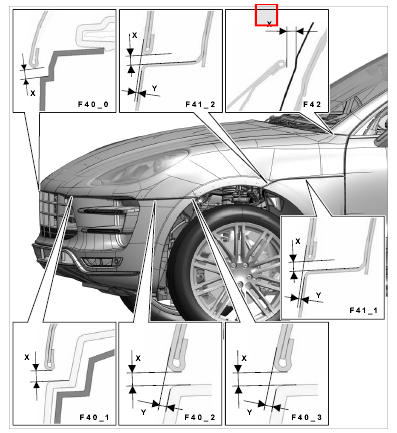

Gap dimensions for body front section

F40_0 - → Gap dimension: 4.8 mm+1 mm-0.6 mm

F40_1 - → Gap dimension: 4.8 mm+1 mm-0.6 mm

F40_2 - → Gap dimension: 3.5 mm+/-0.5 mm

F40_2 - → Gap dimension: 1.5 mm

F40_3 - → Gap dimension: 3.5 mm+/-0.5 mm

F40_3 - → Gap dimension: 1 mm

F41_1 - → Gap dimension: 3.5 mm+/-0.5 mm

F41_1 - → Gap dimension: 1 mm

F41_2 - → Gap dimension: 3.5 mm+/-0.5 mm

F41_2 - → Gap dimension: 1.5 mm

F42 - → Gap dimension: 4.5 mm

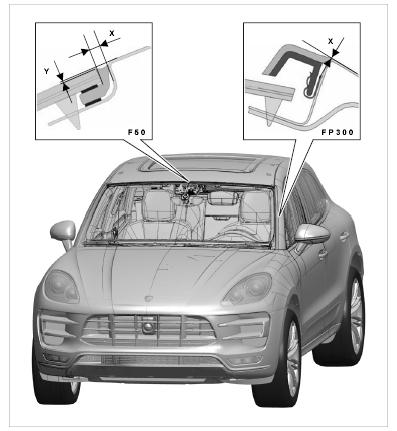

Gap dimensions for windscreen

F50 - → Gap dimension: 3.2 mm+/-0.5 mm

F50 - → Gap dimension: 0.5 mm

FP300 - → Gap dimension: 0.5 mm

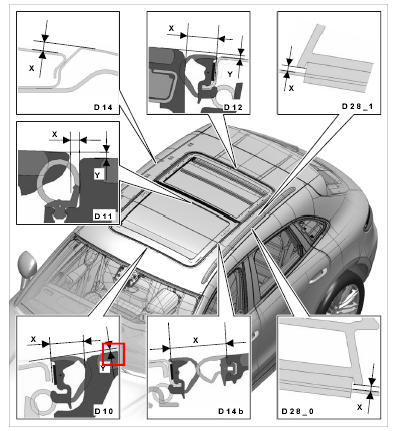

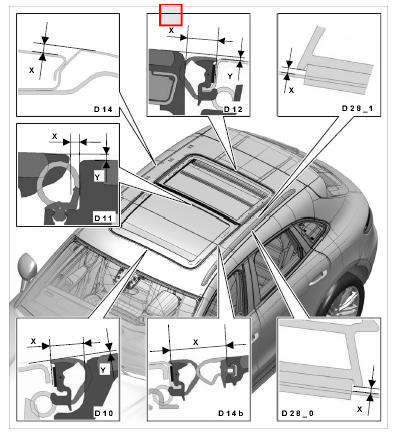

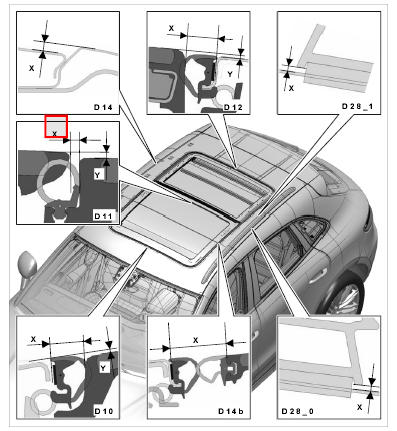

Gap dimensions for roof and sliding roof

D10 - → Gap dimension: 10 mm+/-1.2 mm

D10 - → Gap dimension: 1 mm

D11 - → Gap dimension: 2 mm+/-0.5 mm

D10 - → Gap dimension: 1 mm

D12 - → Gap dimension: 10 mm+/1.2 mm

D12 - → Gap dimension: 1 mm

D14 - → Gap dimension: 3 mm+/1 mm

D114b - → Gap dimension: 22 mm+/1.2 mm

D28_0 - → Gap dimension: 1.5 mm+/-0.75 mm

D28_1 - → Gap dimension: 1.5 mm+/-0.7 mm

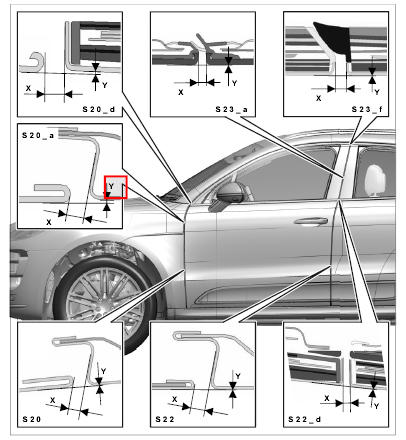

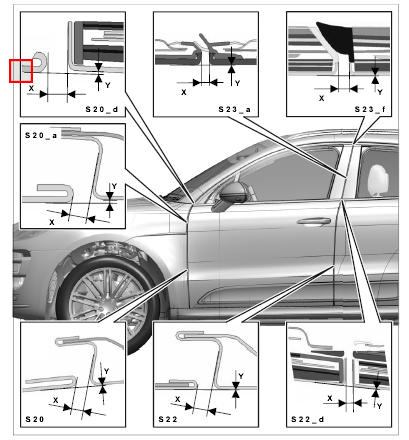

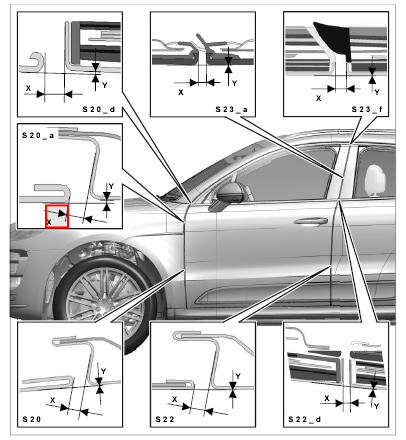

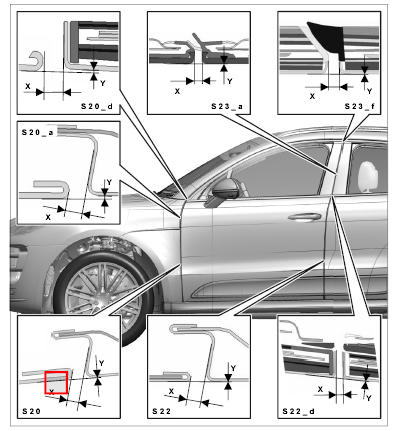

Gap dimensions for front door/rear door/side window

S20_d - → Gap dimension: 4.2 mm+/-1 mm

S20_d - → Gap dimension: 1 mm

S23_a - → Gap dimension: 4.2 mm+/-1 mm

S23_a - → Gap dimension: 0 mm

S23_f - → Gap dimension: 4.2 mm+/-1 mm

S23_f - → Gap dimension: 0 mm

S20_a - → Gap dimension: 4.1 mm+/-0.5 mm

S20_a - → Gap dimension: 1 mm

S20 - → Gap dimension: 4.1 mm+/-0.5 mm

S20 - → Gap dimension: 0 mm

S22 - → Gap dimension: 4.2 mm+/-0.5 mm

S22 - → Gap dimension: 0 mm

S22_d - → Gap dimension: 4.2 mm+/-1 mm

S22_d - → Gap dimension: 0 mm

S21 - → Gap dimension: 4.5 mm+/-2 mm

S21 - → Gap dimension: 0 mm

S23b_0 - → Gap dimension: 4.5 mm+/-1 mm

S24 - → Gap dimension: 4.5 mm+/-2 mm

S24 - → Gap dimension: 0 mm

S51 - → Gap dimension: 4.1 mm+/-1 mm

SP300 - → Gap dimension: 0.8 mm+/-0.5 mm

S23b_1 - → Gap dimension: 4.5 mm+/-1 mm

SP300 - → Gap dimension: 0.8 mm+/-0.5 mm

S25 - → Gap dimension: 3.5 mm+/-0.5 mm

S25 - → Gap dimension: 0 mm

S25_d - → Gap dimension: 3.5 mm+/-1 mm

S25_d - → Gap dimension: 0 mm

S26b - → Gap dimension: 4.6 mm+/-1 mm

S26_a - → Gap dimension: 3.5 mm+/-1 mm

S26_a - → Gap dimension: 4.2 mm+/-1 mm

S26_f - → Gap dimension: 3.5 mm+/-1 mm

S26_f - → Gap dimension: 0.3 mm

S55_0 - → Gap dimension: 4.5 mm+/-1.5 mm

S55_0 - → Gap dimension: 0.8 mm+/-1 mm

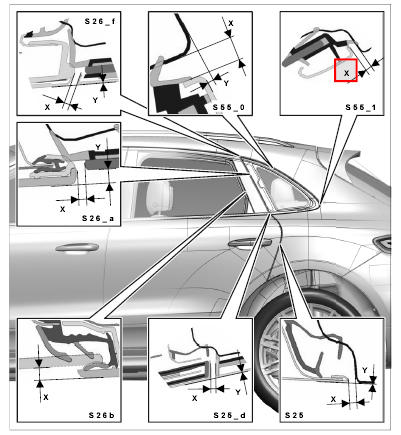

S55_1 - → Gap dimension: 3.8 mm+/-0.8 mm

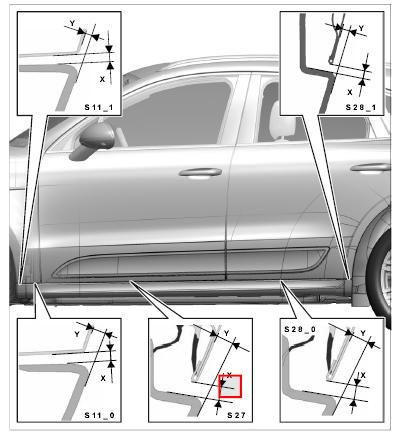

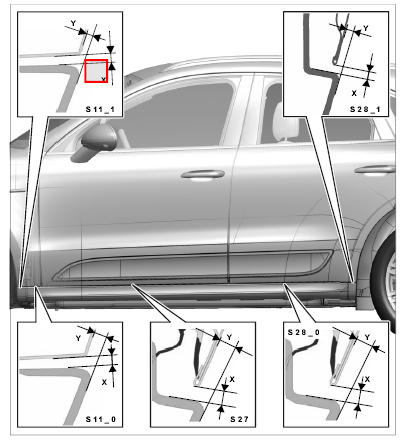

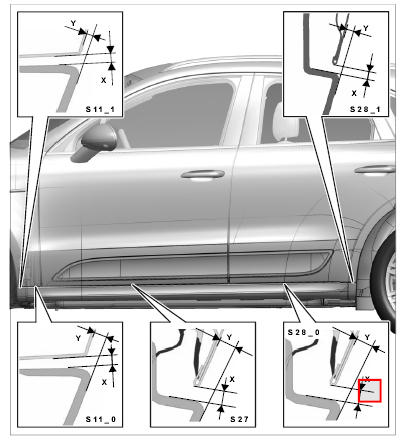

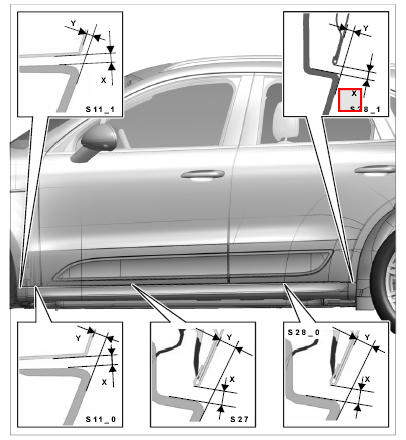

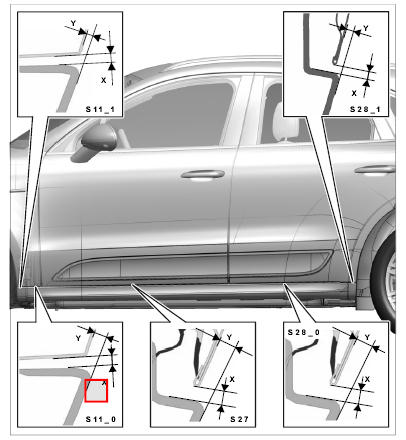

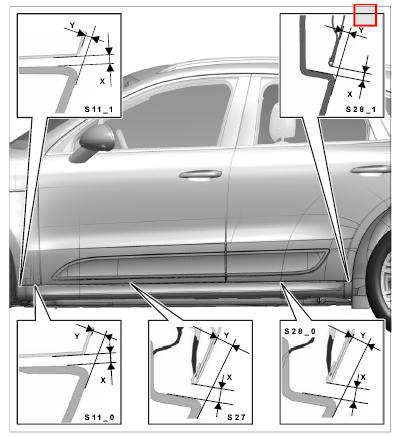

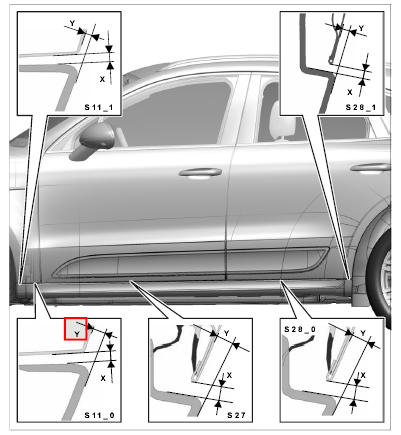

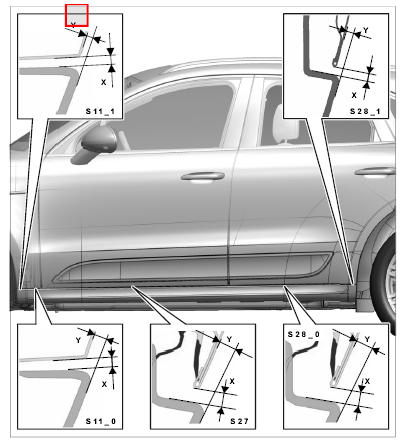

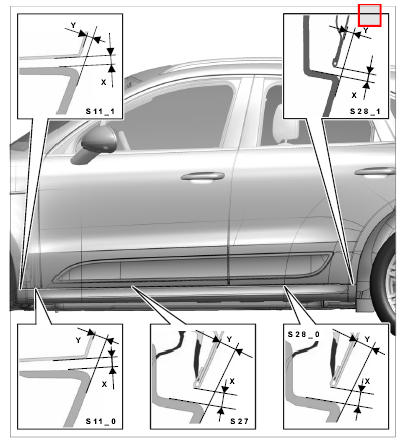

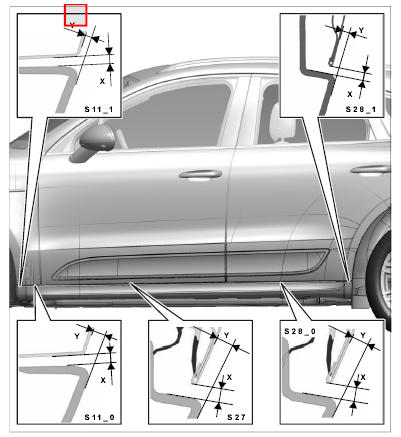

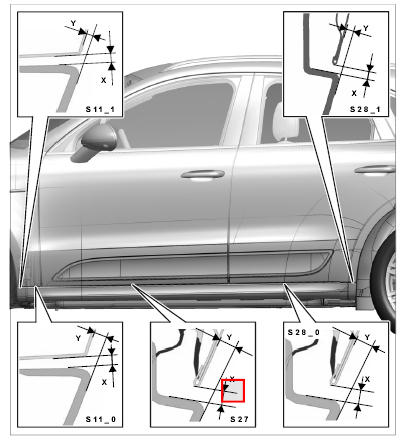

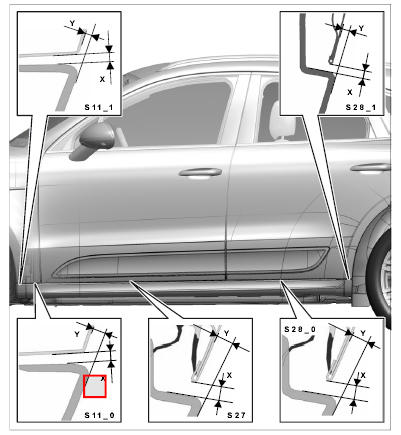

Gap dimensions for sill cover

S11_0 - → Gap dimension: 4 mm+/-1.5 mm

S11_0 - → Gap dimension: 5 mm+/-1.5 mm

S11_1 - → Contact force: 4 mm+/-1.5 mm

S11_1 - → Gap dimension: 5 mm+/-1.5 mm

S27 - → Gap dimension: 4 mm+/-1.5 mm

S27 - → Gap dimension: 5 mm+/-1.5 mm

S28_0 - → Gap dimension: 4 mm+/-1.5 mm

S28_0 - → Gap dimension: 5 mm+/-1.5 mm

S28_1 - → Gap dimension: 4 mm+/-1.5 mm

S28_1 - → Gap dimension: 5 mm+/-1.5 mm

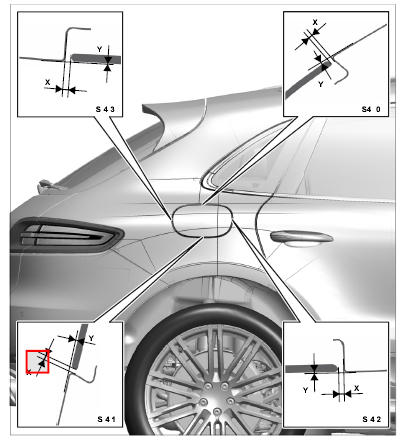

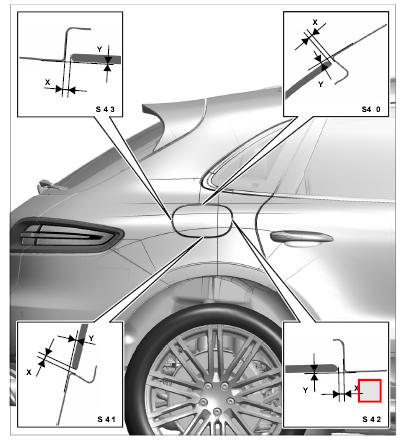

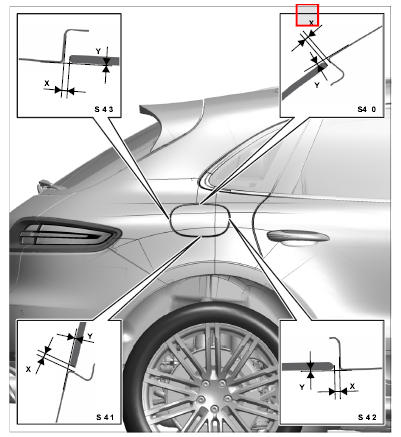

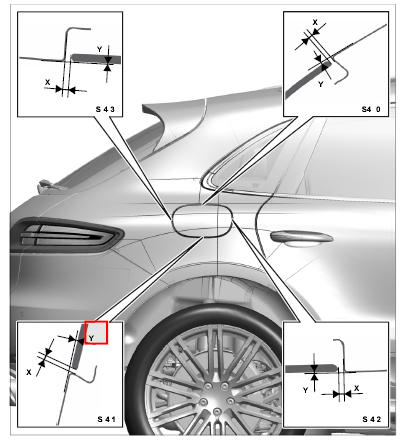

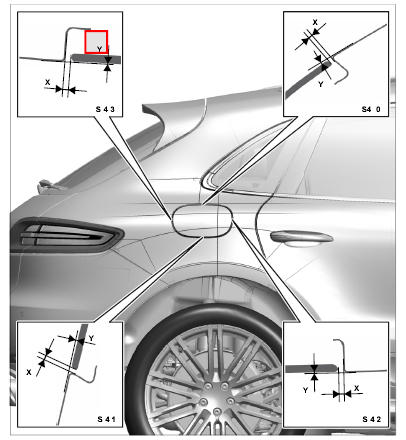

Gap dimensions for tank cap

S40 - → Gap dimension: 2 mm+/-0.5 mm

S40 - → Gap dimension: 0.25 mm

S41 - → Gap dimension: 2.3 mm+/-0.5 mm

S41 - → Gap dimension: 0.25 mm

S42 - → Gap dimension: 2.3 mm+/-0.5 mm

S42 - → Gap dimension: 0.25 mm

S43 - → Gap dimension: 2.3 mm+/-0.5 mm

S43 - → Gap dimension: -0.25 mm

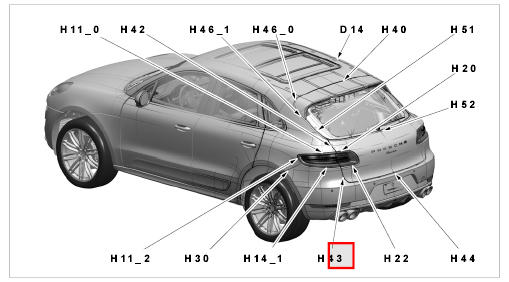

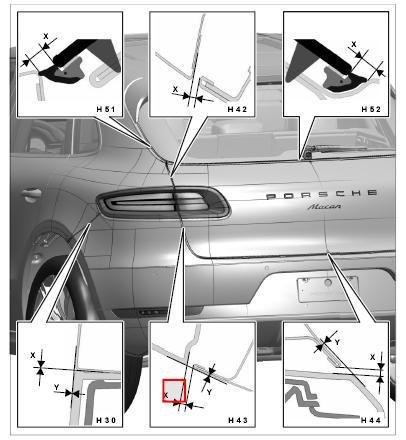

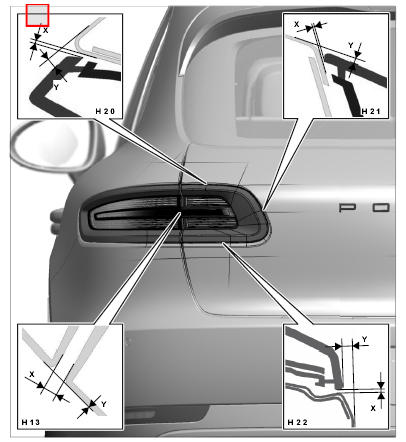

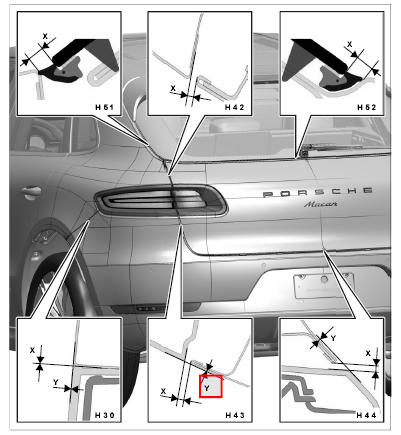

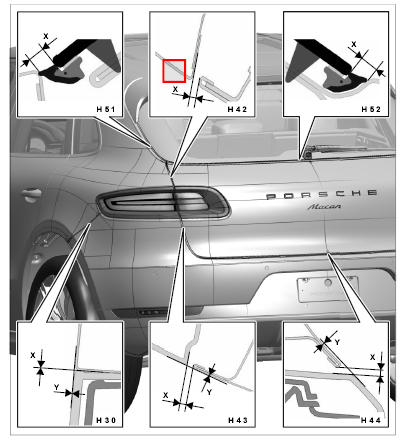

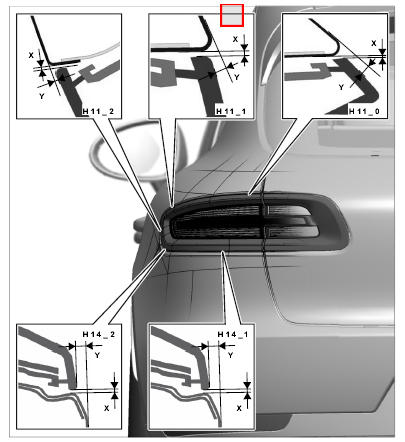

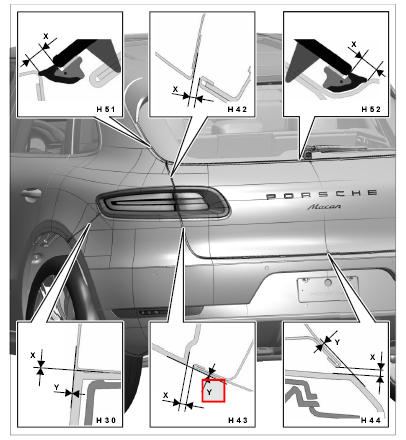

Gap dimensions for tail lights

H11_0 - → Gap dimension: 1 mm+/-0.8 mm

H11_0 - → Gap dimension: -4.5 mm+/-0.5 mm

H11_1 - → Gap dimension: 1 mm+/-0.8 mm

H11_1 - → Gap dimension: -2 mm+/-0.5 mm

H11_2 - → Gap dimension: 1 mm+/-0.8 mm

H11_2 - → Gap dimension: 1 mm+/-0.8 mm

H14_1 - → Gap dimension: 1 mm+/-0.8 mm

H14_1 - → Gap dimension: -3.8 mm+/-0.5 mm

H14_2 - → Gap dimension: 1 mm+/-0.5 mm

H14_2 - → Gap dimension: 1 mm+/-0.5 mm

H13 - → Gap dimension: 4 mm+/-0.8 mm

H13 - → Gap dimension: 0 mm+/-0.8 mm

H20 - → Gap dimension: 1 mm+/-0.8 mm

H20 - → Gap dimension: -4.5 mm+/-0.5 mm

H21 - → Gap dimension: 1 mm+/-0.8 mm

H21 - → Gap dimension: -2 mm+/-0.5 mm

H22 - → Gap dimension: 1 mm+/-0.8 mm

H22 - → Gap dimension: -3.8 mm+/-0.5 mm

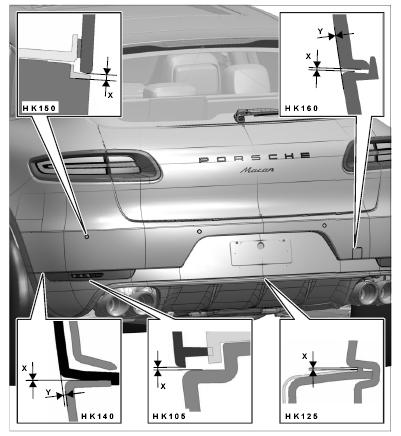

Gap dimensions for rear end

H30 - → Gap dimension: 0 mm+0.5 mm

H30 - → Gap dimension: 0 mm+/-0.8 mm

H42 - → Gap dimension: 4 mm+0.7 mm-0.9 mm

H43 - → Gap dimension: 4 mm+/-0.8 mm

H43 - → Gap dimension: 4 mm+/-0.8 mm

Gap dimensions - 55 - Rear lid

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Rear lid/rear spoiler to roof	R1 (gap)	Gap dimension	6 mm	+/-1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler
Rear lid/rear spoiler to roof	R2 (offset)	Gap dimension	-1.5 mm	+/-1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler to roof
Rear lid to side panel	R3 (gap)	Gap dimension	4 mm	+0.7 mm	-0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel
Rear lid to side panel	R3b (offset)	Gap dimension	0 mm	+/-0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel
Rear lid to rear apron	R4 (gap)	Gap dimension	4 mm	+/-0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to rear apron
