Cavity Preservation

Information

• In the case of repair, the standard cavity preservation material must be applied to body accessories according to the following illustrations.
• The cavity preservation must be applied after completion of the assembly work.

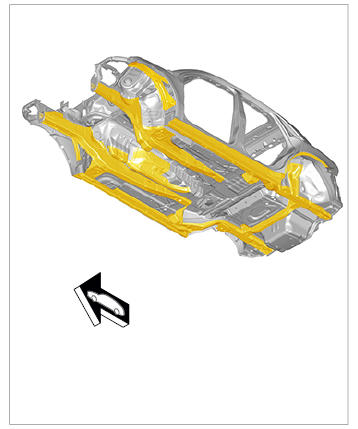

  Fig 1: Identifying Cavity Preservation Positions

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

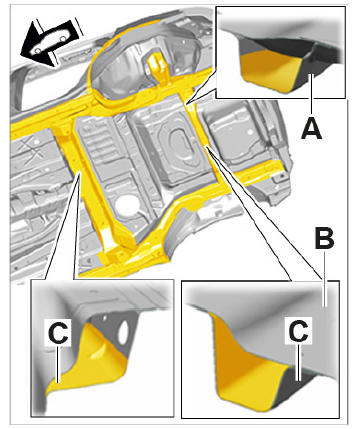

  Fig 2: Identifying Rear Floor And Cross Member Area

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Cross member
  2. Rear floor
  3. Cross member

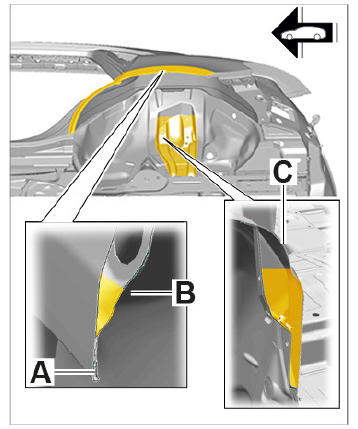

  Fig 3: Identifying Rear Wheel Housing Area

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Side panel
  2. Rear wheel housing, outer
  3. Rear wheel housing, inner

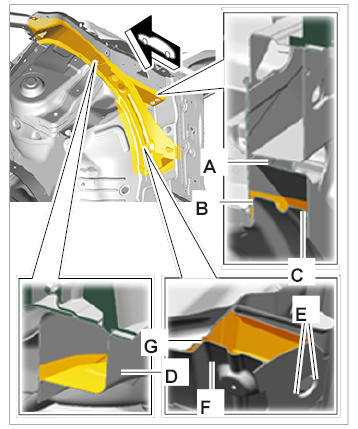

  Fig 4: Identifying Longitudinal Member For Front Wheel Housing

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Connecting piece
  2. Lower A-pillar, inner
  3. Reinforcement part
  4. Connecting piece
  5. Upper side member closing element
  6. Closing element
  7. Lower A-pillar, inner

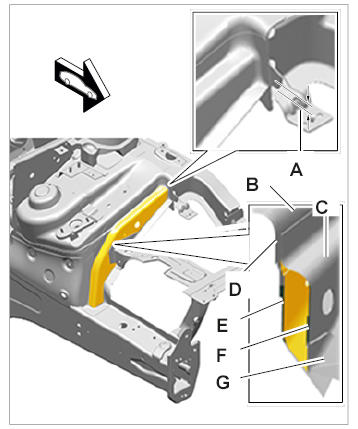

  Fig 5: Identifying Spring Strut Dome/Headlight Mounting Area

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. B  - Closing element
  2. C  - Support
  3. D  - Reinforcement
  4. E  - Reinforcement
  5. F  - Support reinforcement
  6. G  - ABS support block

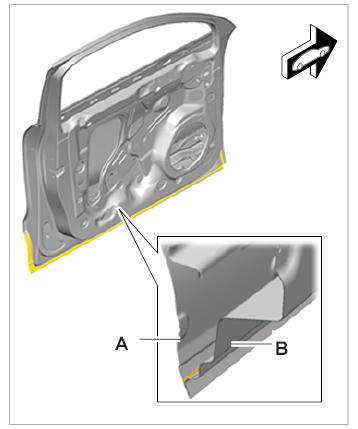

  Fig 6: Identifying Front Door

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Door, outer part
  2. Door, inner part

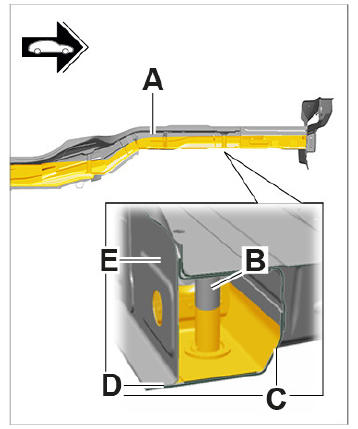

  Fig 7: Identifying Front Side Member/Spring Strut Dome Area

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Front side member/spring strut mount, left & right (coat surface with wax)
  2. Front side member
  3. Closing element
  4. Front side member/spring strut mount, left & right (coat surface with wax)
  5. Closing element
  6. Front side member
  7. Bulkhead part

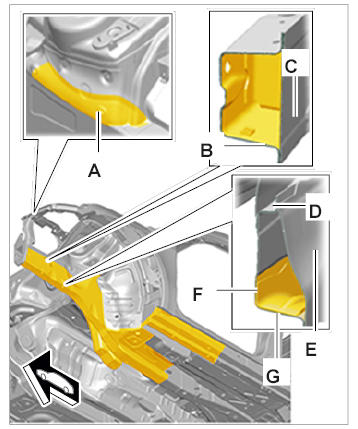

  Fig 8: Identifying Front Side Member Area

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Tunnel insert
  2. Transmission bracket reinforcement
  3. Bracket reinforcement, left & right
  4. Wheel arch extension
  5. Reinforcement
  6. Front suspension/stabiliser suspension, left & right

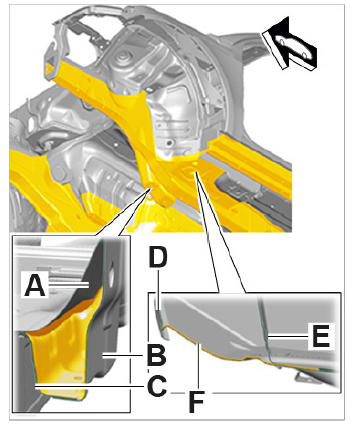

  Fig 9: Identifying Floorpan Area

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Tunnel insert
  2. Front floor section, left & right
  3. Front side member, left & right
  4. Closing element
  5. Inner side member, left & right
  6. Bar element of rear side member
  7. Side member reinforcement, left & right
  8. Outer side panel, left & right
  9. Tunnel insert

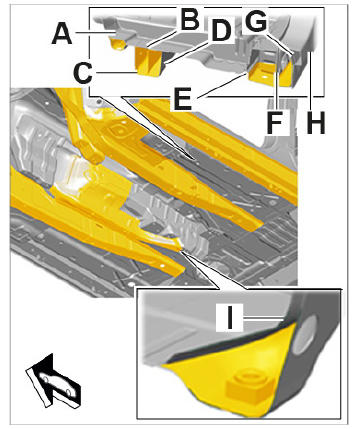

  Fig 10: Identifying Rear Side Member Area

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Rear side member, left & right
  2. Reinforcement
  3. Rear side member
  4. Rear side member, outer edge
  5. Rear wheel housing, inner
