Installing Side Section Lower Part

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

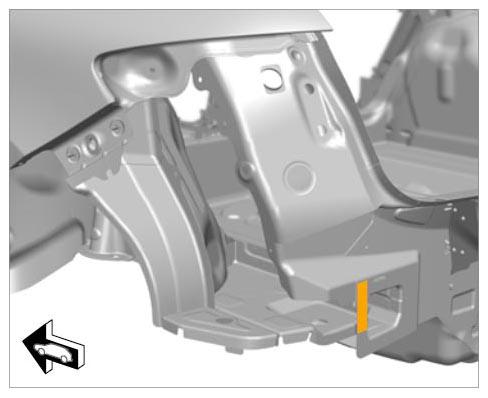

   Fig 1: Identifying Adhesive Applying Areas

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Resistance spot-weld the side section lower part.
   1. 2.1. Plug-weld area -A-  using inert gas.

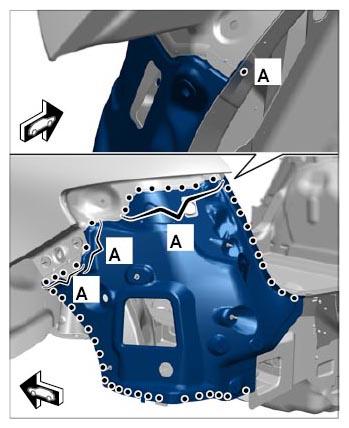

      Fig 2: Installing Side Section Lower Part

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
