Replacing seal for rear panel

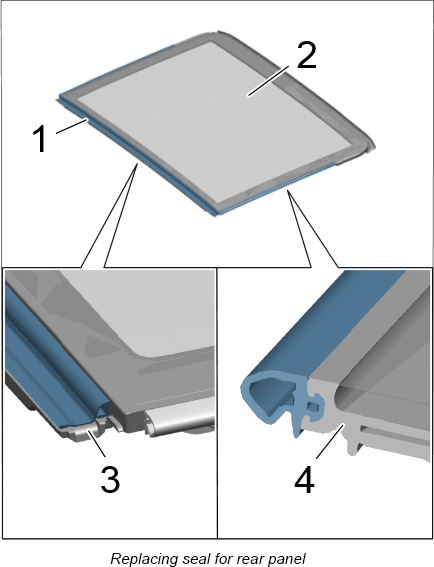

G12835441
  1. Remove seal for rear panel.
    1. 1.1. Pull off seal at the side -4-  of the rear glass panel -2-  sideways.
    2. 1.2. Pull off seal at the front -3-  of the rear glass panel -2-  in an upward direction.
  2. Install seal for rear panel.

    Information

    To make installation easier, the area should be moistened with a soapy solution.

    1. 2.1. Press seal at the front -3-  into the front mounting from above and center it.
    2. 2.2. Press seal at the side -4-  into the mounting on the glass panel.
