Overview of water drains
Information

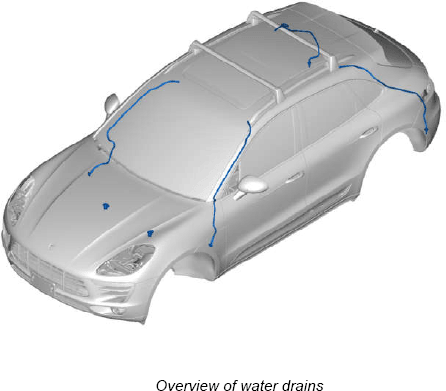

The following overview serves as a guide to the installation positions of the water drains on the sliding roof or convertible top and plenum panel. Add-on parts in the area are not shown for the sake of clarity.

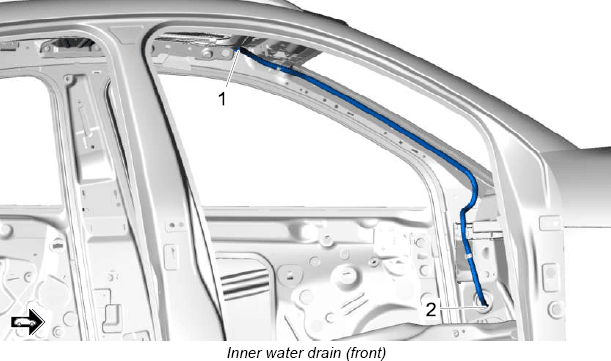

| 1 | Inner water drain (front) - inlet |
| 2 | Inner water drain (front) - outlet |

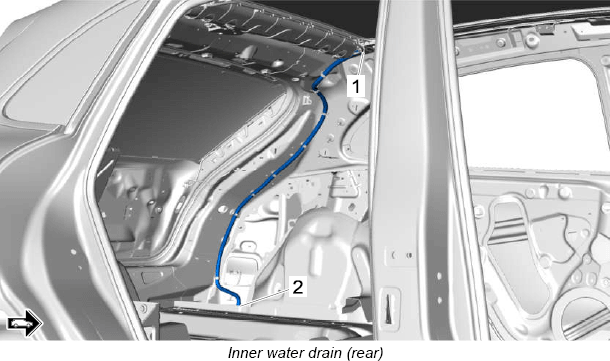

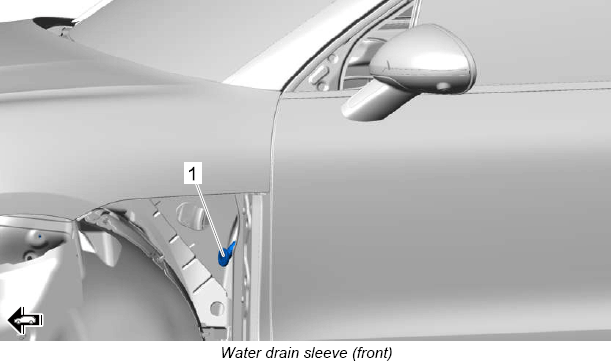

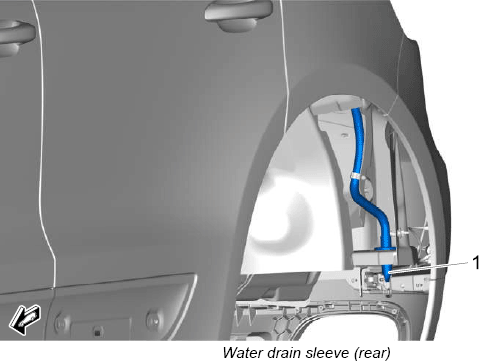

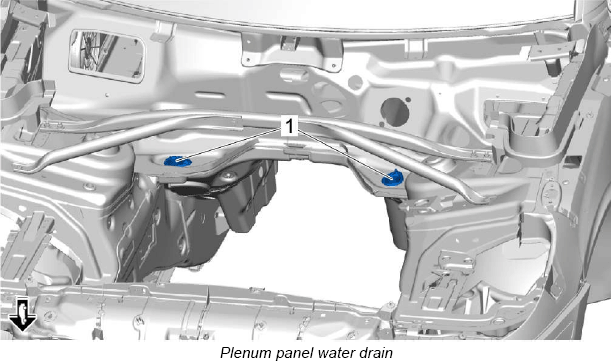

| 1 | Inner water drain (rear) - inlet |
| 2 | Inner water drain (rear) - outlet |
| 1 | Inner water drain (front) - outlet |
| 1 | Inner water drain (rear) - outlet |
| 1 | Water drain valve |
