Removing rear sliding-roof panel
- Open the sun blind fully.

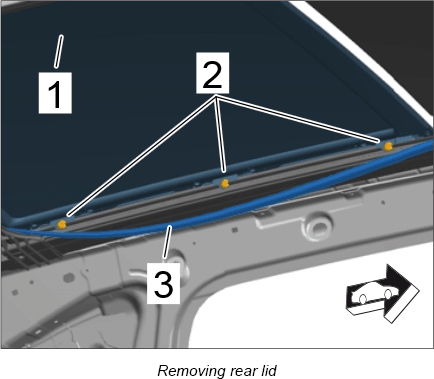

- Pull acoustic seal -3-
off the assembly frame until the fastening screws -2-
are accessible.
- Unscrew fastening screws -2-
on the glass panel -1-
.

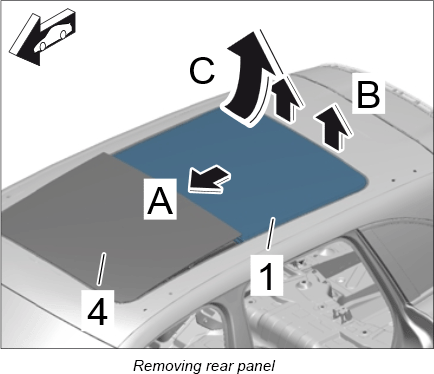

- Raise the front panel -4-
.
- Slide the rear glass panel -1-
slightly under the front glass panel -4-
(-A-
).
- Only lift the rear part of the rear glass panel -1-
out of the roof cut-out -B-
.
- Guide out the rear glass panel -1-
by moving it up at an angle -C-
over the roof and under the front glass panel -4-
.
