Technical values
TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for bracket | Tightening torque | 8 Nm (6 ft lb.) | |||
|

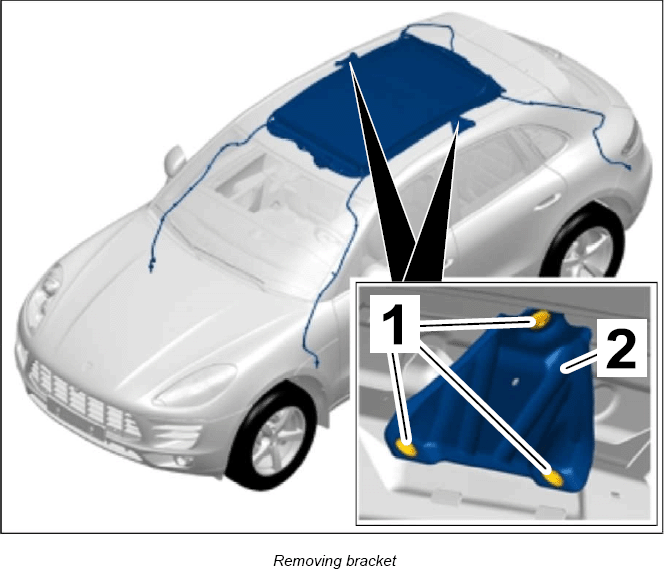

Removing bracket |
|||||
| Fastening screws for roof assembly | Observe specified tightening sequence | Tightening torque | 8 Nm (6 ft lb.) | ||
|

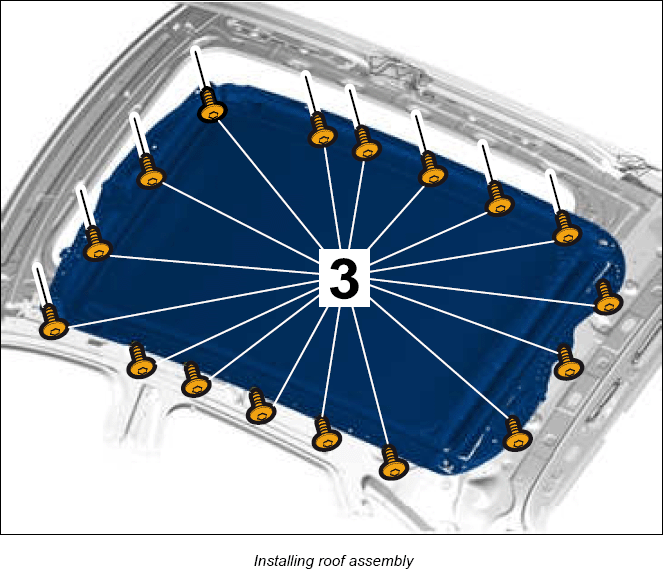

Installing roof assembly |
|||||
| Securing roof assembly to body | Diameter | 10 mm | |||
|

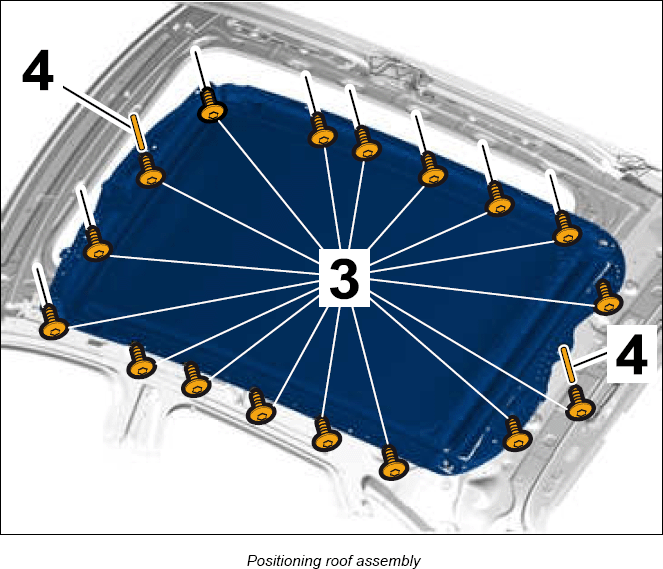

Positioning roof assembly |
|||||
