Technical values

TORQUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Articulated lever, top   Tightening torque 20 Nm (15 ft lb.) +/-2 Nm (+/-1.5 ft lb.)

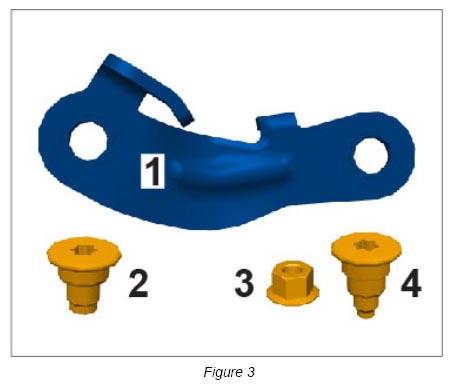

G12890481
Articulated lever, bottom   Tightening torque 23 Nm (17 ft lb.) +/-2 Nm (+/-1.5 ft lb.)
