Technical values -70- Trim panels

1. Screw → Tightening torque: 2 Nm (1.5 ft lb.)
2. Nut → Tightening torque: 2.5 Nm (2 ft lb.)

1. Screw → Tightening torque: 3 Nm (2 ft lb.)

1, 2, 3  - Screw → Tightening torque: 4.5 Nm (3 ft lb.)

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

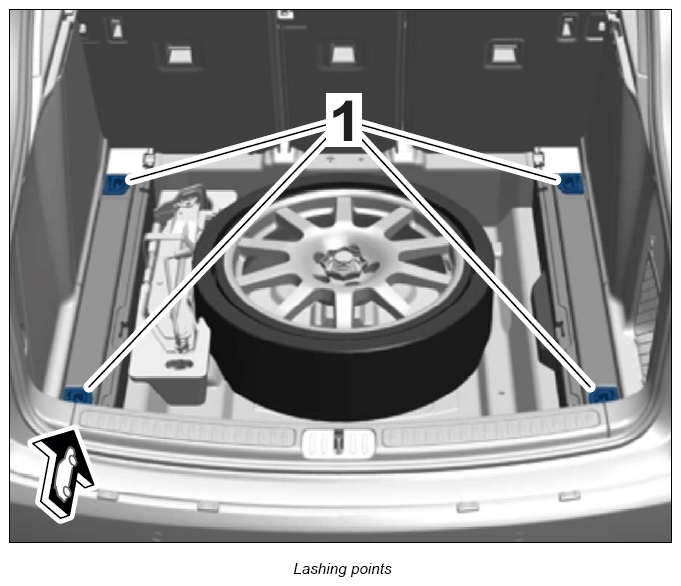

Fastening screw for lashing point		Tightening torque	8 Nm (6 ft lb.)
Armrest to door panel	Internal Torx screw, Ø 5 x 14	Tightening torque	2.3 Nm (1.5 ft lb.)
