Technical values -70- Linings

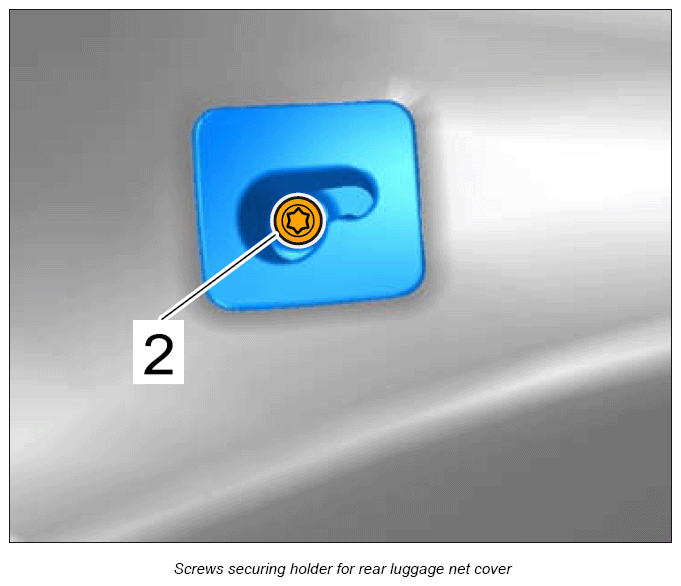

2 - Screw → Tightening torque: 5.6 Nm (4 ft lb.)
TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for lower roof console | Tightening torque | 5 Nm (3.5 ft lb.) | |||
|

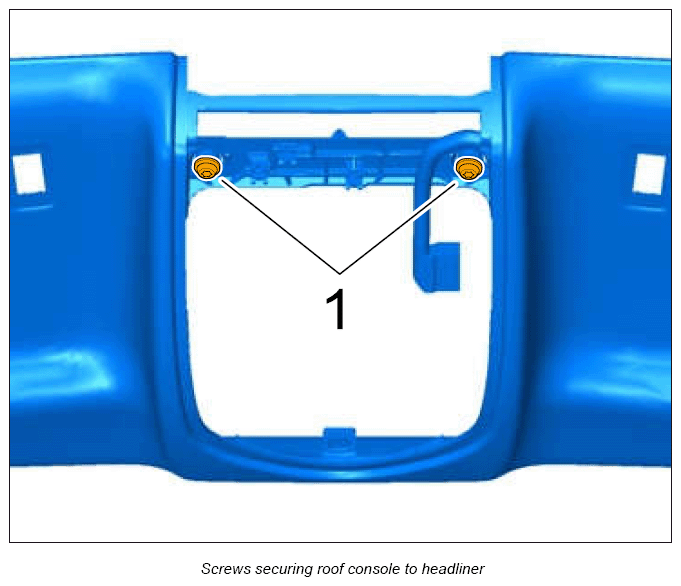

Screws securing roof console to headliner |
|||||
| Fastening screw for luggage net cover holder | Tightening torque | 9 Nm (6.5 ft lb.) | |||
