Removing C-pillar trim panel

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Remove upper part of side trim panel for luggage compartment. → 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT
2. Remove side airbag and loosen rear inner door sill trim at the top of the C-pillar. → 680519 REMOVING AND INSTALLING REAR INNER DOOR SILL TRIM

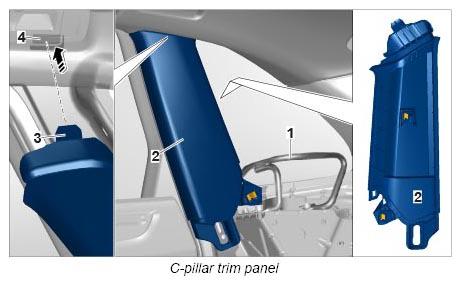

3. Unscrew fastening screws and remove belt guide clips -1-  .
4. Unclip C-pillar trim panel -2-  .
5. Guide tab -3-  out of mounting -4-  and remove trim panel -2-  .
