Removing door handle

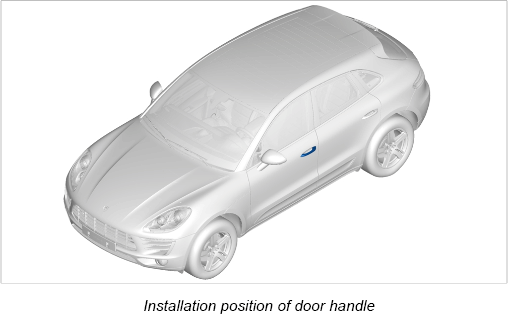

G12835068Courtesy of PORSCHE CARS NORTH AMERICA, INC.

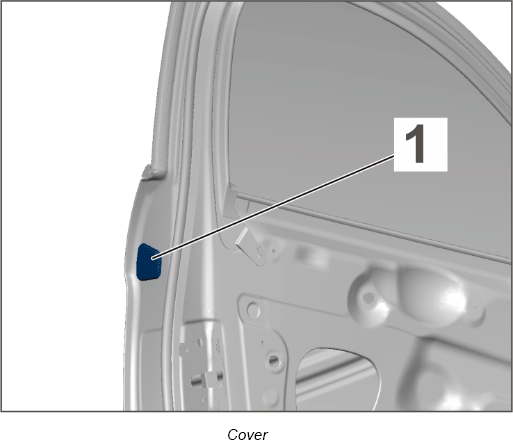

  1. Unclip cover -1-  .
    G12835069Courtesy of PORSCHE CARS NORTH AMERICA, INC.

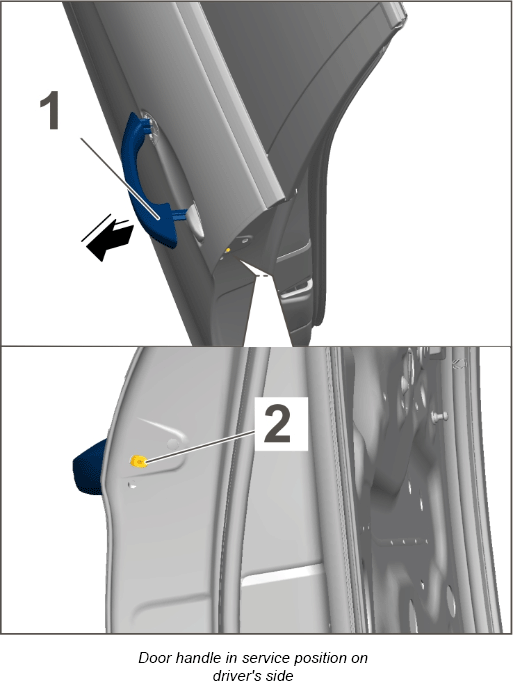

  2. Move door handle into service position - driver's side  .
    G12835070Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Pull out door handle -1-  .
    2. 2.2. Loosen adjusting screw fully -2-  .

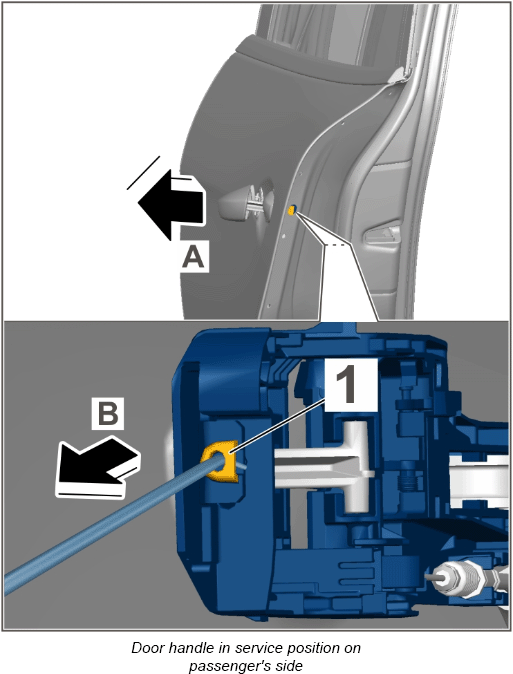

  3. Move door handle into service position - passenger's side  .
    G12835071Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Pull out door handle. -arrow A-
    2. 3.2. Pull locking mechanism -1-  out through the bore using hook 3438  . -arrow B-

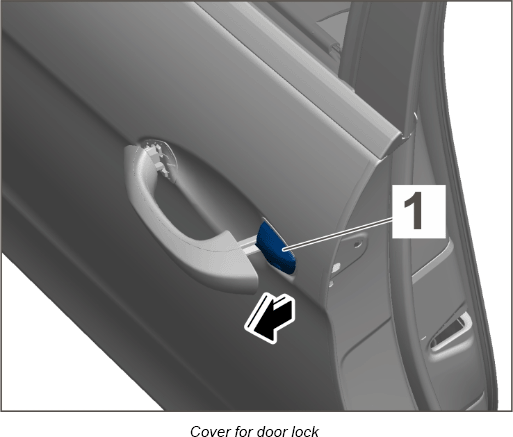

  4. Pull off cover for door lock -1-  .
    G12835072Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove door handle.

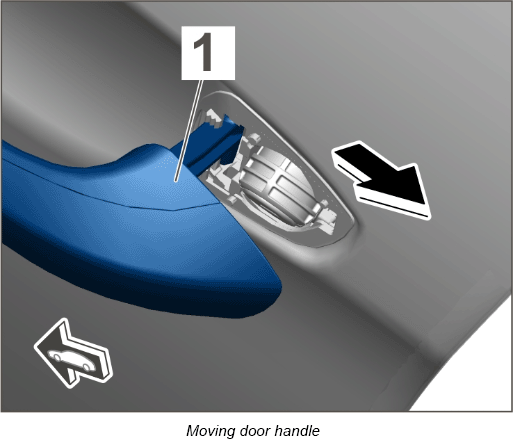

    1. 5.1. Move door handle -1-  to the rear.
      G12835073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

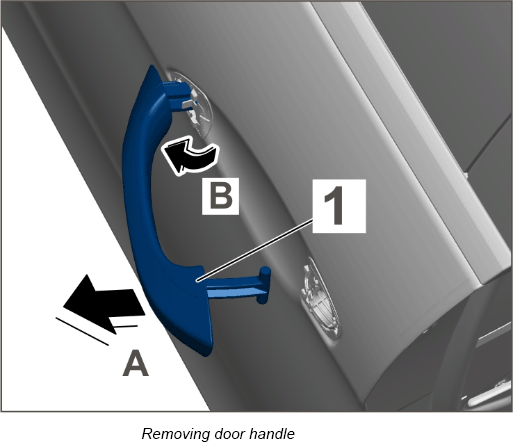

    2. 5.2. Pull door handle -1-  outwards. -arrow A
      G12835074Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 5.3. Guide out door handle -1-  . -arrow B
    G12835075Courtesy of PORSCHE CARS NORTH AMERICA, INC.

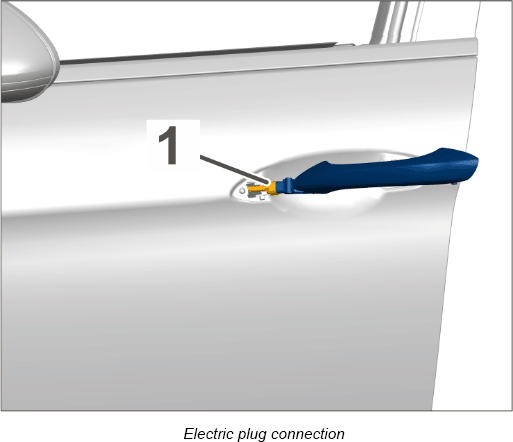

  6. Release and unplug electric plug connection -1-  .
    G12835076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Remove door handle.

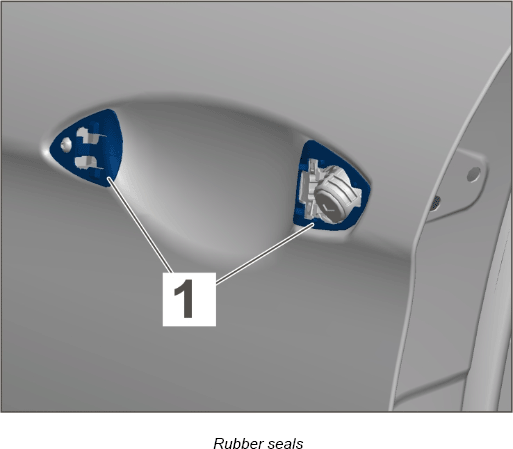

  8. Pull off rubber seals. -1-
G12835077Courtesy of PORSCHE CARS NORTH AMERICA, INC.
