Technical values

TORQUE SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2

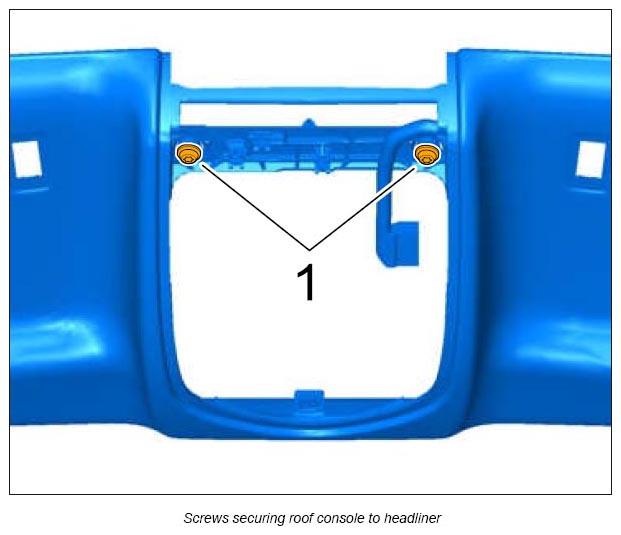

Fastening screw for lower roof console   Tightening torque 5 Nm (3.5 ft lb)
G12890434Courtesy of PORSCHE CARS NORTH AMERICA, INC.

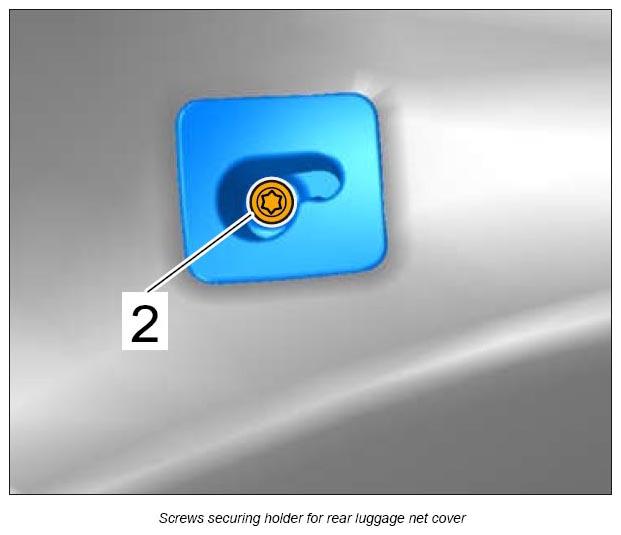

Fastening screw for luggage net cover holder   Tightening torque 9 Nm (6.5 ft lb.)
G12890435Courtesy of PORSCHE CARS NORTH AMERICA, INC.
