Removing front grab handle

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
• Some steps must be carried out automatically  .
• Some of the repair illustrations show only one side of the vehicle  .

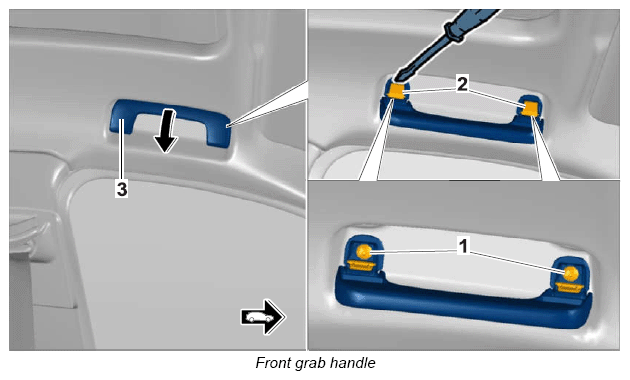

1. Swivel grab handle -3-  down and hold it securely.
2. Unclip covers -2-  in the upper area and swivel them downwards.
3. Unscrew fastening screws -1-  and remove grab handle -3-  .
