Installing front center loudspeaker (dashboard)

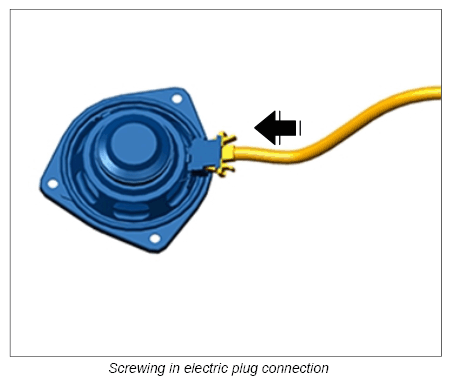

1. Plug in electric plug connection on loudspeaker until it engages securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

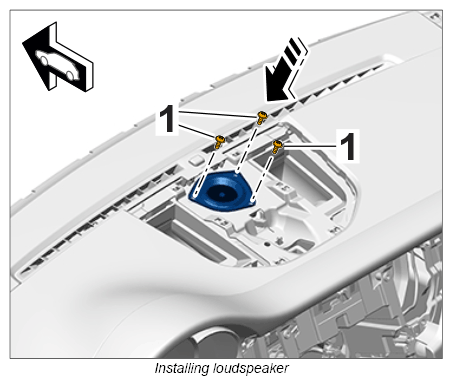

2. Position the loudspeaker on the dashboard and secure it with fastening screws -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
