Removing mid-range loudspeaker from door panel

→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component  .
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

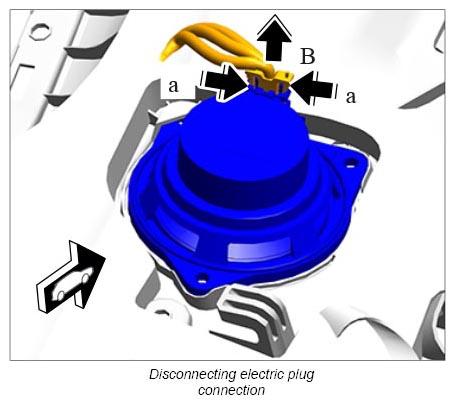

1. Release and disconnect electric plug connection for mid-range loudspeaker.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

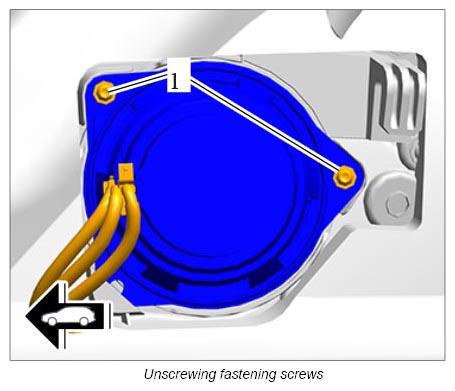

2. Unscrew and remove fastening screws for mid-range loudspeaker -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Remove mid-range loudspeaker from the door panel.
