WM 2706IN General information on AGM vehicle battery: Information: Notes
- Damage to battery sensor.
- Battery sensor sends incorrect battery values to the vehicle electrical system.
→ Always connect a battery charger for providing an external power supply or for jump-lead starting to the defined connections in the engine compartment. → 2X00IN BATTERY TRICKLE CHARGING
Information
The AGM (Absorbent Glass Mat ) battery is a maintenance-free, sealed battery.
- This battery must not be opened. If the battery is opened, it must be replaced .

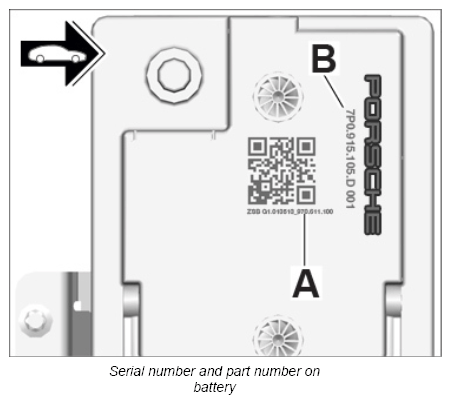

- There is a serial number -A- and a part number -B- on the top right-hand side of the battery
.
- After replacing the battery, the serial number and part number as well as the battery size and manufacturer must be entered using the PIWIS Tester under: Gateway/Maintenance/repairs/Change battery .
- The battery size and battery manufacturer must also be entered when changing the battery .
Information
- To prevent contact corrosion, only approved bolts, nuts, washers, etc. should be used. These elements have a special surface coating and must be stored separately.
The battery is one of the most important electrical components in the vehicle. Fault-free functioning of the battery contributes greatly to customer satisfaction. To guarantee long and efficient operation, the battery must be checked and maintained according to the instructions provided here.
Besides starting the vehicle, the battery also acts as a buffer and supplier of electrical power for the entire vehicle electrical system.
An AGM (Absorbent Glass Mat ) battery is used as standard. The AGM battery offers the following advantages, for example:
- Sealed, valve-controlled battery
- High-cycle battery
- High cold-start performance
- Cannot leak or tilt
- Totally maintenance-free
- Shake-resistant
- No acid leakage if the housing is damaged
- Flexible installation and safe to handle
- High load capacity and longer service life
- Ideal for Start/Stop function
