Accessories & Equipment
>>
Anti-Theft Systems
>>
58 - Rear Door, Central Locking
>>
WM 582615 Adjusting lock peg
>>
Technical values
Technical values
TORQUE SPECIFICATION
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2
Fastening screw for lock peg (striker pin)
Tightening torque
25 Nm (19 ft. lb.)

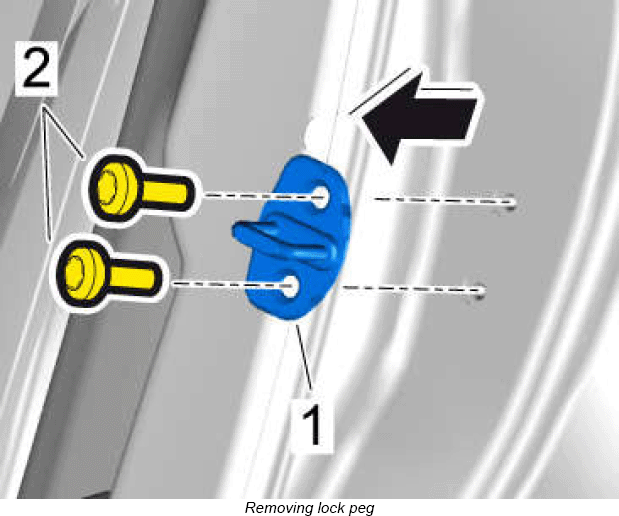

Removing lock peg
