Removing Sealing Ring For Drive Shaft

  1. Press guide sleeve -3-  on sufficiently and drive sealing ring -1-  out of the guide sleeve using a punch -2-  .

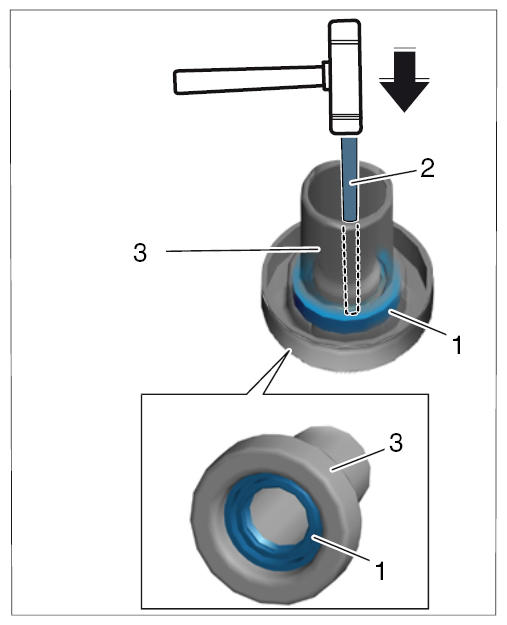

    Fig 1: Removing Sealing Ring
    G10024819Courtesy of PORSCHE CARS NORTH AMERICA, INC.
