Installing Sealing Ring For Drive Shaft

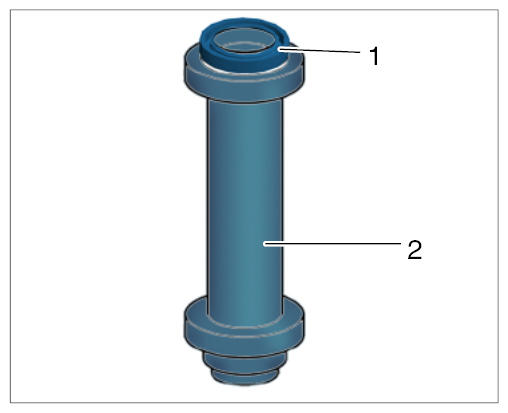

Place new sealing ring -1- on the recessed side of the pressure piece 9743 -2- .

Fig 1: Placing Sealing Ring On Pressure Piece
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

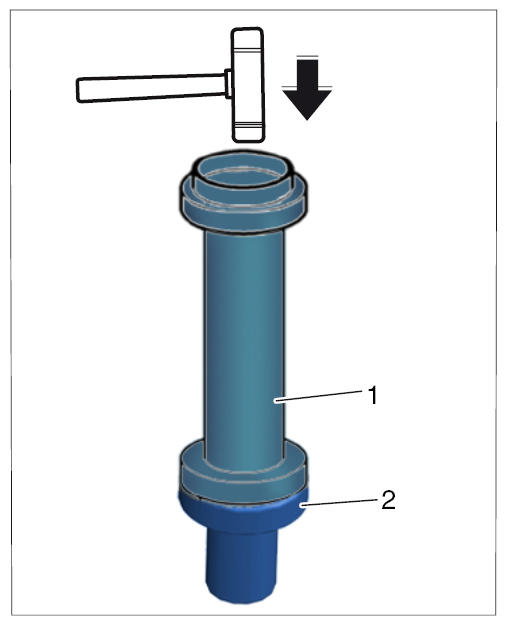

Tap sealing ring -1- into the guide sleeve -2- using a rubber hammer.

Fig 2: Installing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
