Removing front left TPM antenna

→ Remove the ignition key and switch off load before disconnecting or removing load  .

1. Release electric plug connection for TPM antenna -A-  and disconnect it -arrow-  .

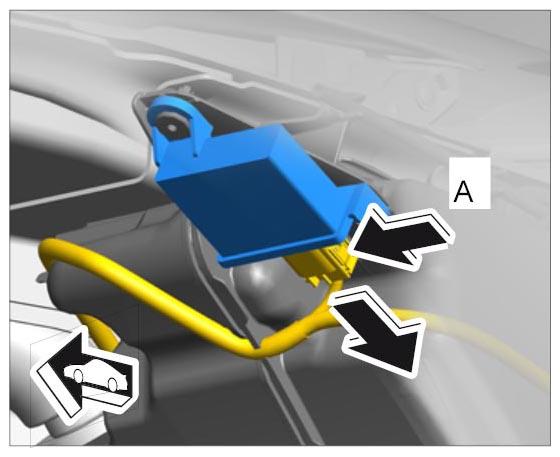

   Fig 1: Disconnecting Electric Plug Connection For Front Left TPM Antenna

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Open the rivets -1-  and remove TPM antenna.

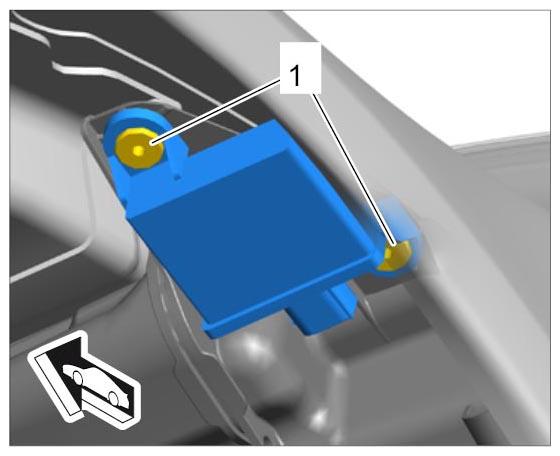

   Fig 2: Identifying Front Left TPM Antenna Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
