Removing Roll-Over Bar

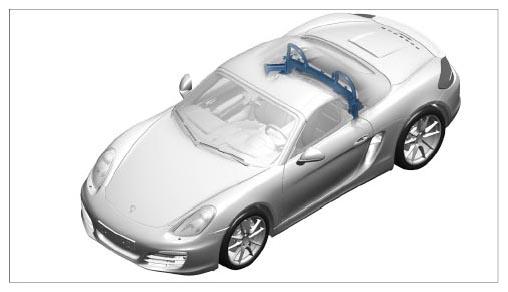

Fig 1: Identifying Roll-Over Bar Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

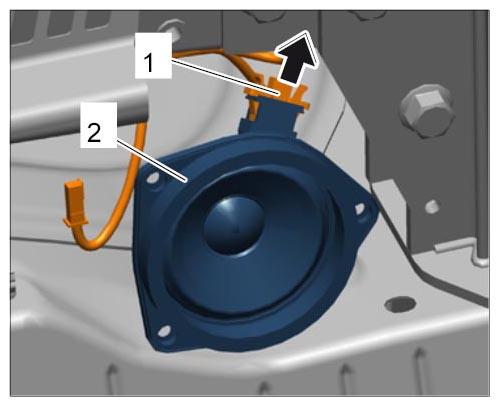

Disconnect electric plug connection -1- for right and left loudspeakers -2- -arrow- .

Fig 2: Disconnecting Electric Plug Connection For Loudspeakers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

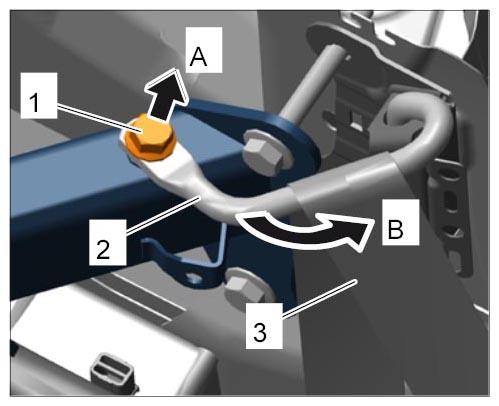

Loosen right and left fastening screws -1- of the belt strap guide -2- .
1. 2.1. Rotate belt strap -2- forwards -arrow- and pull out belt strap -3- .
Fig 3: Loosening Fastening Screw For Belt Strap Guide.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

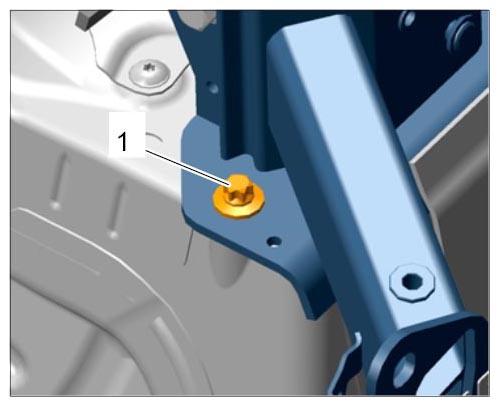

Loosen the side fastening screws -1- on both sides of the roll-over bar.

Fig 4: Loosening Side Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

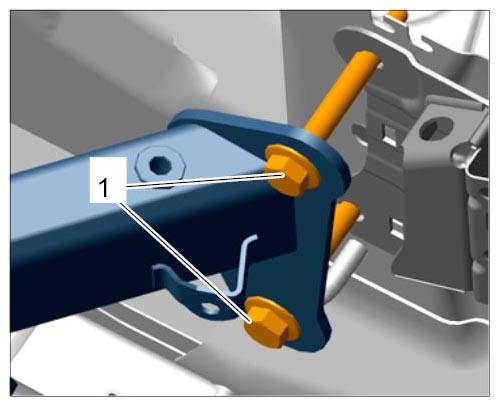

Loosen the front fastening screws -1- on both sides of the roll-over bar.

Fig 5: Loosening Front Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

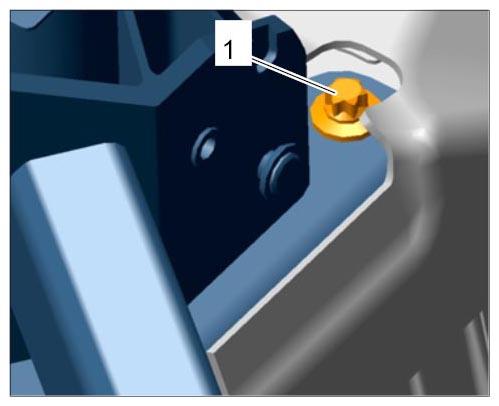

Loosen the rear fastening screws -1- on both sides of the roll-over bar in the convertible top compartment.

Fig 6: Loosening Rear Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear side section flaps.

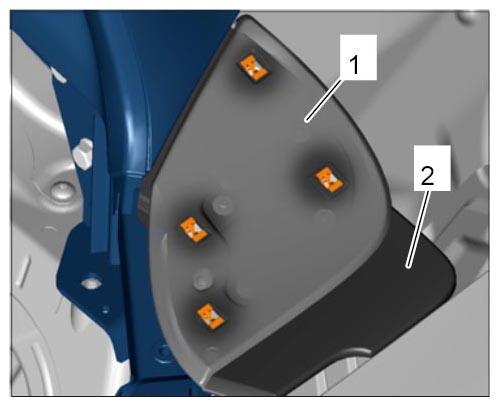

1. 6.1. Unclip cover for rear side section flap -1- from the rear side section flap -2- .

  Fig 7: Identifying Rear Side Section Flap Cover
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Lift rear side section flaps and lever the bowden cable -1- out of the bracket -2- using a suitable tool.

  Fig 8: Removing Rear Side Section Flaps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open convertible top.

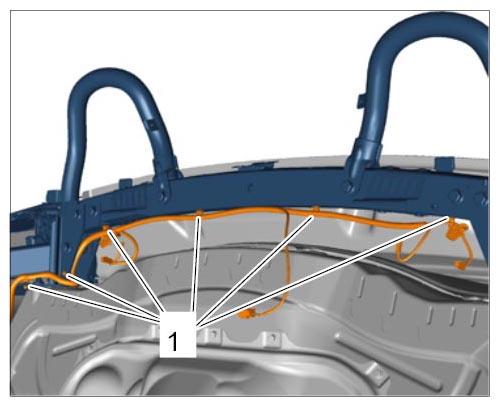

Loosen the loudspeaker wire harness from the clips along the roll-over bar.

Fig 9: Loosening Clips For Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

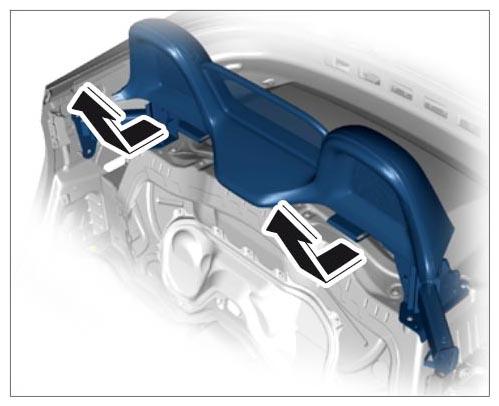

Remove roll-over bar in -arrowrichtung- direction.

Fig 10: Removing Roll-Over Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
