Removing Lower Belt Strap Guide

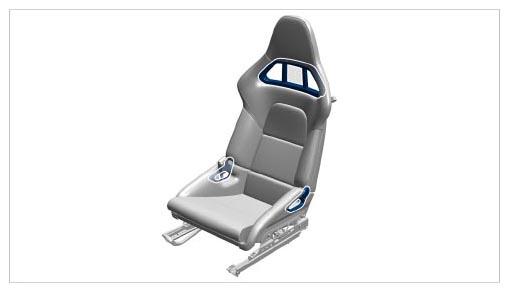

Fig 1: Identifying Belt Strap Guide Position (Folding Sports Bucket Seat)
G10027401Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove lower belt strap guide -2-  from the seat shell -3-  (-arrow-  ).

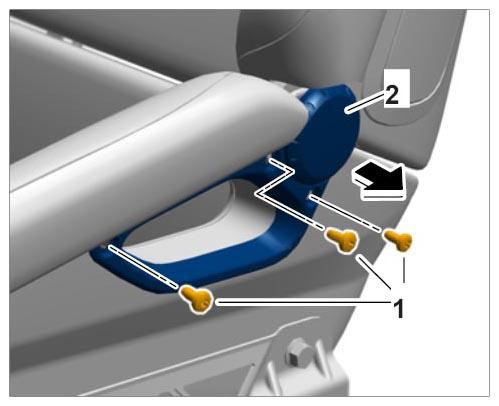

    Fig 2: Removing Lower Belt Strap Guide
    G10027402Courtesy of PORSCHE CARS NORTH AMERICA, INC.
