Installing Lower Belt Strap Guide

  1. Position lower belt strap guide -2-  on the seat shell -3-  and secure with the fastening screws -1-  (Tightening torque 3 Nm (2 ftlb.) +/-0.3 Nm (+/-0.2 ftlb.)  ).

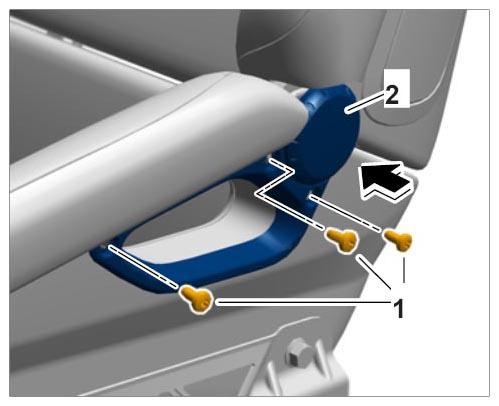

    Fig 1: Installing Lower Belt Strap Guide
    G10027408Courtesy of PORSCHE CARS NORTH AMERICA, INC.
