Removing ATF Pan

Information

• Even after you have drained the hydraulic oil, there will still be residual oil in the ATF pan  .

1. Loosen all screws on the ATF pan except for screws -1 and 3-  in reverse tightening sequence and then unscrew them.
2. Carefully lever off the ATF pan on the opposite side to screws -1 and 3-  and catch any oil that overflows.
3. Unscrew screws -1 and 3-  and carefully remove the ATF pan.

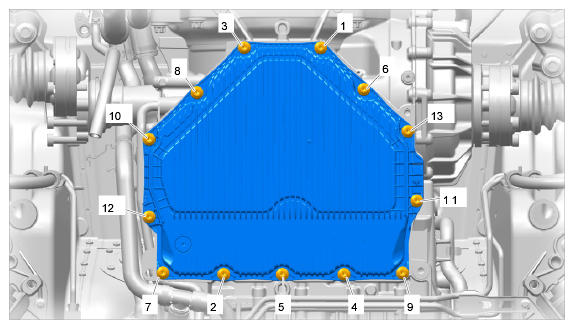

Fig 1: Identifying ATF Pan Screw Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
