Preliminary Work

WARNING: This page is about a different variant/trim than selected.
WARNING: Caustic fluids
  • Danger of chemical burns

→ Avoid contact with caustic fluid.

→ Wear personal protective gear.

→ Ensure that there is good ventilation.

→ If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

WARNING: Hot fluid
  • Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

  1. Remove support plate.

    421419 REMOVING AND INSTALLING SUPPORT PLATE - section on "Removing"

  2. Drain ATF.

    370255 CHANGING ATF CLUTCH FLUID

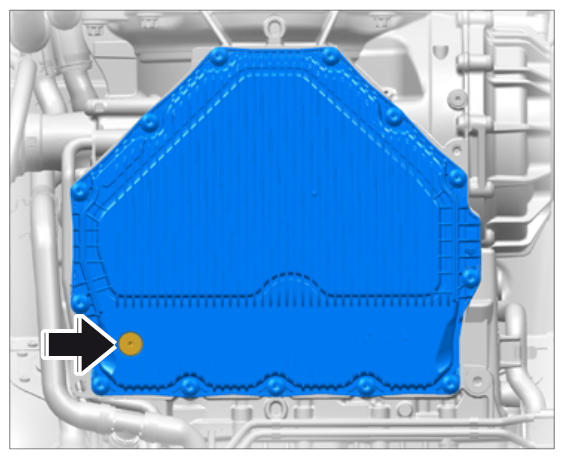

    Fig 1: Locating ATF Drain Plug
    G10026414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
