Removing Right Transmission Mount

WARNING: This page is about a different variant/trim than selected.

Information

Only loosen the nut on the transmission mount if the transmission mount has to be replaced .
Counter at the two flats on the transmission bracket while loosening .
Do not loosen the nut during re-installation .

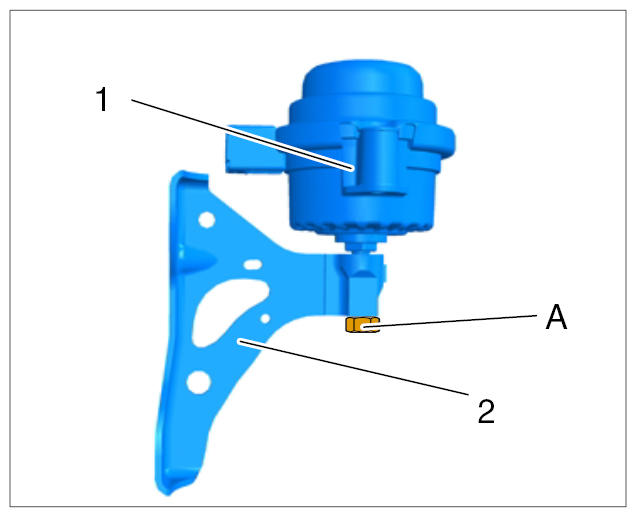

Overview Of Transmission Mount:

1 - Transmission mount
2 - Transmission bracket
A - Nut on transmission mount

Fig 1: Removing Transmission Bracket With Hydraulic Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

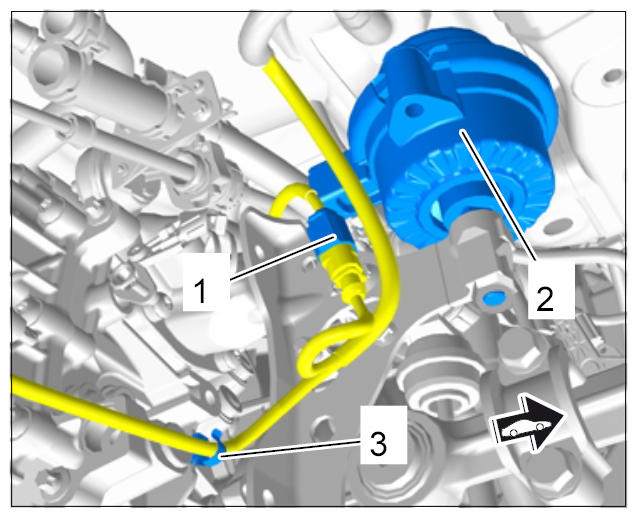

On Vehicles With Dynamic Unit Mounts: Disconnect cable plug -1- on the transmission mount -2- .
1. 1.1. Unclip retaining clips -3- on the transmission and move electric line aside.

  Fig 2: Releasing Dynamic Unit Mount Electric Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

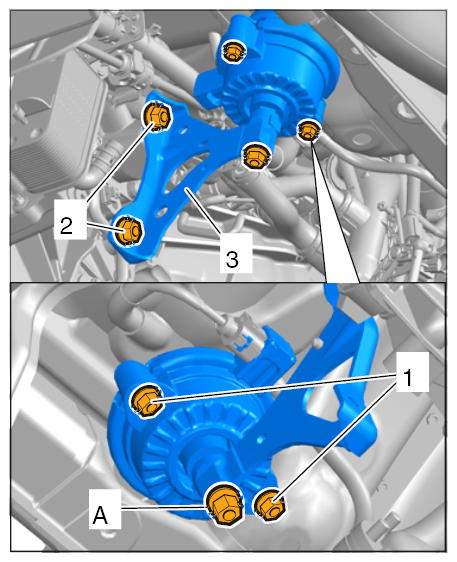

Screw off fastening nuts -1- on the transmission mount.
1. 2.1. Only loosen the fastening nut on the transmission mount if the transmission mount will be replaced.
Unscrew fastening screws -2- on the transmission bracket -3- .

Fig 3: Identifying Dynamic Unit Mount Fasteners

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove fastening screws on the transmission mount and remove transmission mount and transmission bracket.
