Removing Left Transmission Mount

WARNING: This page is about a different variant/trim than selected.

Information

Only loosen the nut on the transmission mount if the transmission mount has to be replaced .
Counter at the two flats on the transmission bracket while loosening .
Do not loosen the nut during re-installation .

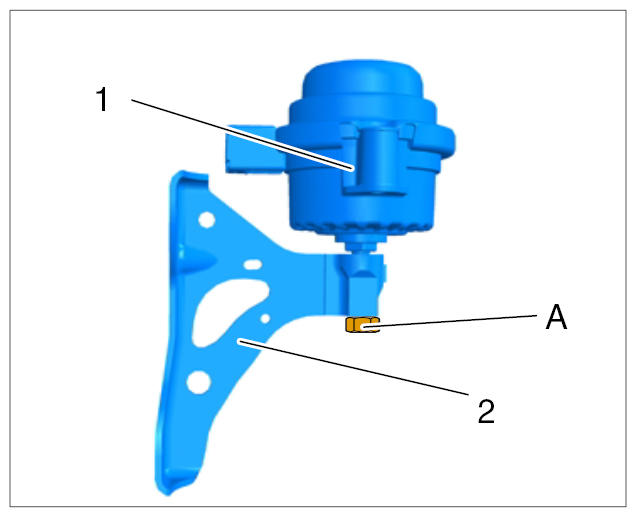

Overview Of Transmission Mount With Transmission Bracket:

1 - Transmission mount
2 - Transmission bracket
A - Nut on transmission mount

Fig 1: Removing Transmission Bracket With Hydraulic Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

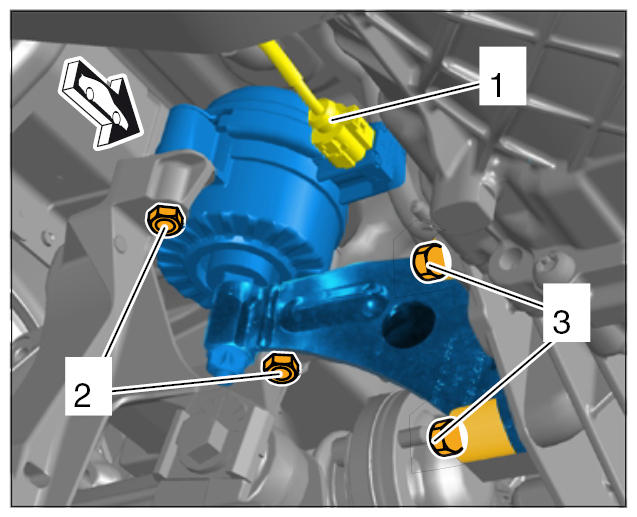

On Vehicles With Dynamic Unit Mounts: Disconnect cable plug -1- on the transmission mount.
Screw off fastening nuts -2- on the transmission mount.
Unscrew fastening screws -3- on the transmission.

Fig 2: Identifying Dynamic Unit Mount Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fastening screws on the transmission mount and remove transmission mount and gear support.
