Installing Right Transmission Mount

WARNING: This page is about a different variant/trim than selected.
  1. Insert and position transmission mount with transmission bracket -3 -  .
  2. Fit and tighten fastening nuts -1-  . Tightening Torque 33 Nm
  3. Fit and tighten fastening screws -2-  . Initial Tightening 30 Nm (22 ft. lbs.)

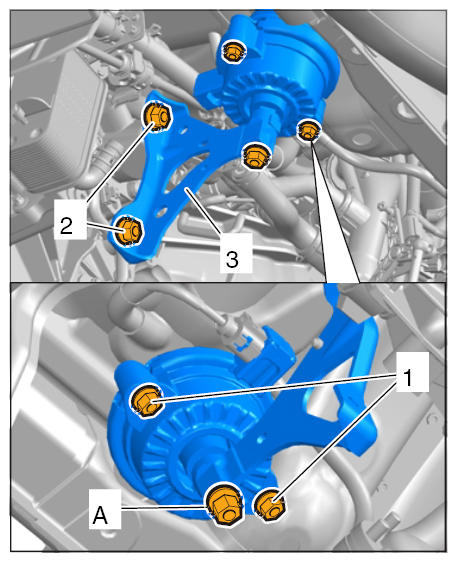

    Fig 1: Identifying Transmission Mount Fasteners
    G10026411Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • For new transmission mounts, tighten the fastening nut according to specifications after installing the bracket and securing the transmission mount  .
    • Counter at the two flats on the transmission bracket while tightening  .
  4. If the transmission mount was replaced, tighten fastening nut.

    Counter At The Two Flats On The Transmission Bracket!

    Tightening Torque 85 Nm

  5. Position electric line and clip in retaining clips -3-  on the transmission.
  6. On Vehicles With Dynamic Unit Mounts:  Connect cable plug -1-  to the transmission mount -2-  .

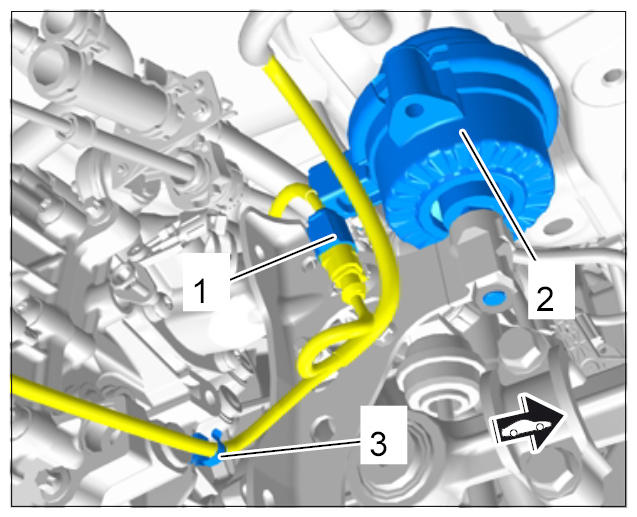

    7. Fig 2: Securing Electric Lines
    G10026412Courtesy of PORSCHE CARS NORTH AMERICA, INC.
