Installing Left Transmission Mount
WARNING: This page is about a different variant/trim than selected.

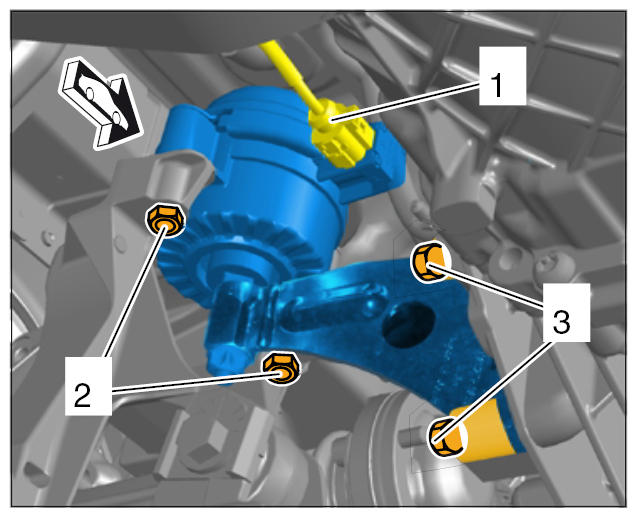

- Fit transmission mount with gear support.
- Fit and tighten fastening nuts -2- . Tightening Torque 33 Nm
- Screw in and tighten fastening screws -3-
. Initial Tightening 30 Nm (22 ft. lbs.) Final Tightening +40°
Information
- For new transmission mounts, tighten the fastening nut according to specifications after installing the bracket and securing the transmission mount .
- Counter at the two flats on the transmission bracket while tightening .
- If the transmission mount was replaced, tighten fastening nut.
Counter At The Two Flats On The Transmission Bracket!
Tightening Torque 85 Nm
- On Vehicles With Dynamic Unit Mounts: Connect cable plug -1- to the transmission mount.
