Removing Porsche Doppelkupplung (PDK)

WARNING: This page is about a different variant/trim than selected.

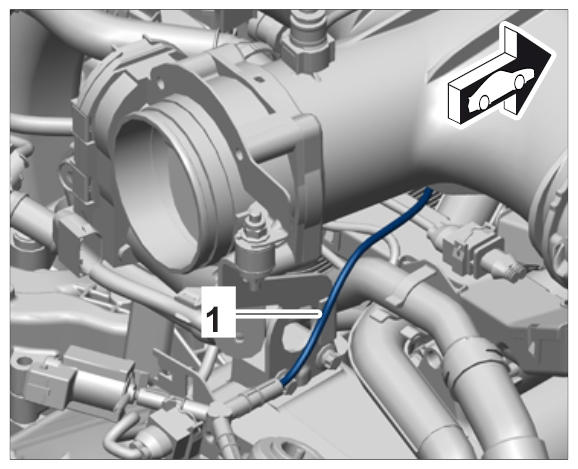

Pull off vacuum line -1- .

Fig 1: Removing Vacuum Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

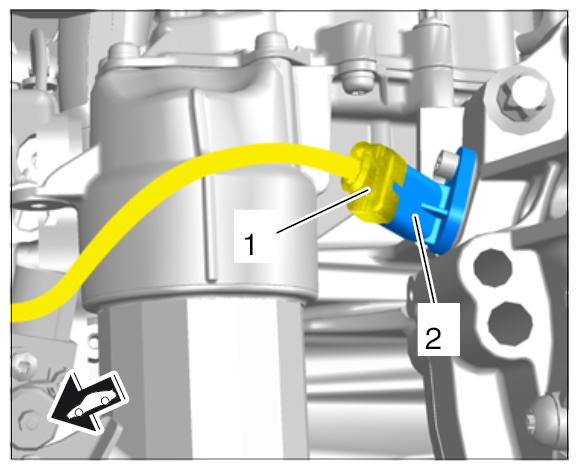

Pull off cable plug -1- from the speed sender -2- .

Fig 2: Pulling Off Cable Plug From Speed Sender (Pulse Sender)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

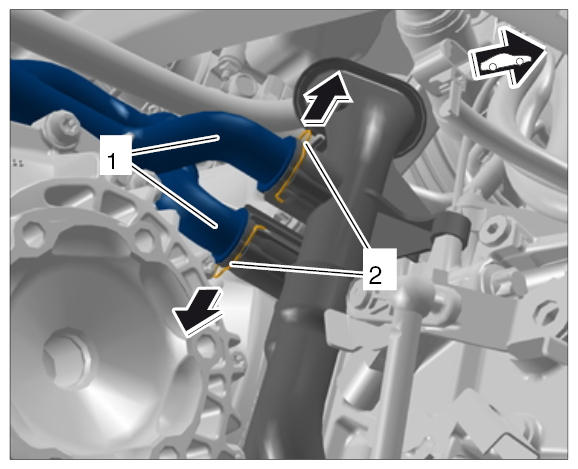

Disconnect cooling water hoses.
1. 3.1. Remove spring clamps on the plug-in couplings and pull off hoses.
2. 3.2. Re-fit spring clamps.
3. 3.3. Check O-rings for damage and replace if necessary.

  Fig 3: Disconnecting Coolant Hoses
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

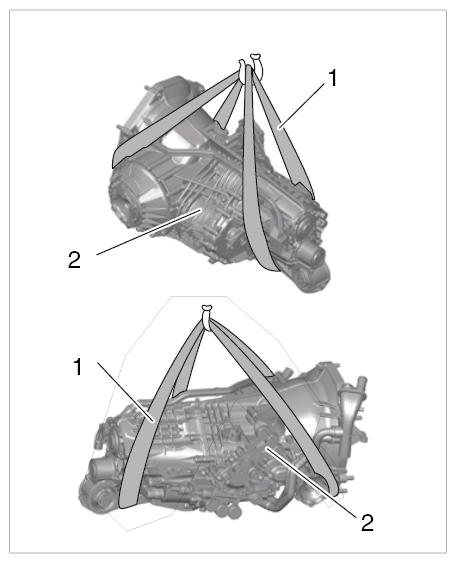

Secure Porsche double-clutch transmission -2- using restraining straps -1- .
1. 4.1. Provide workshop crane.
2. 4.2. Fit restraining straps as shown in the illustration.

  Fig 4: Fitting Transmission With Restraining Strap
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  NOTE:
  Mechanical overload of components
  - Component will be damaged irreparably
  → Observe guidelines for assembly and disassembly
Remove Porsche double-clutch transmission.

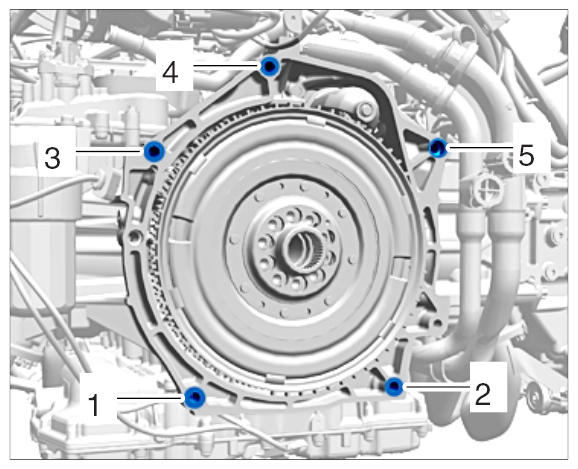

1. 5.1. First remove screws -1 and 2- , then screws -3 to 5- .

  Fig 5: Identifying PDK Transmission Bolt Loosening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
