Installing Transmission Control Unit (PDK)

WARNING: This page is about a different variant/trim than selected.
  1. Slide the control unit into the bracket until it engages securely.
  2. Connect plug connections.
    1. 2.1. Connect electric plug connection -1-  (-A-  ) and bend the clip over at the same time until the connector locks securely.
    2. 2.2. Connect electric plug connection -2-  (-B-  ) and bend the clip over at the same time until the connector locks securely.

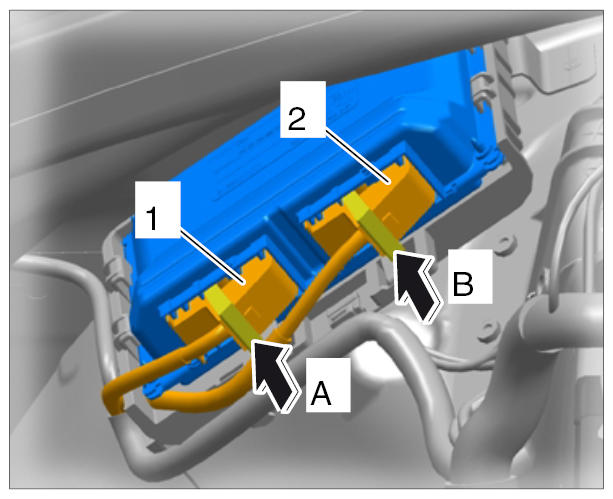

    Fig 1: Connecting Plug Connections
    G10026374Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Secure the control unit.
    1. 3.1. Fit the bracket with the control unit in the mounting point on the body and slide it in -A-  .
    2. 3.2. Secure the bracket with the control unit using an expansion rivet -B-  .
    3. 3.3. Secure the wire harness -C-  .

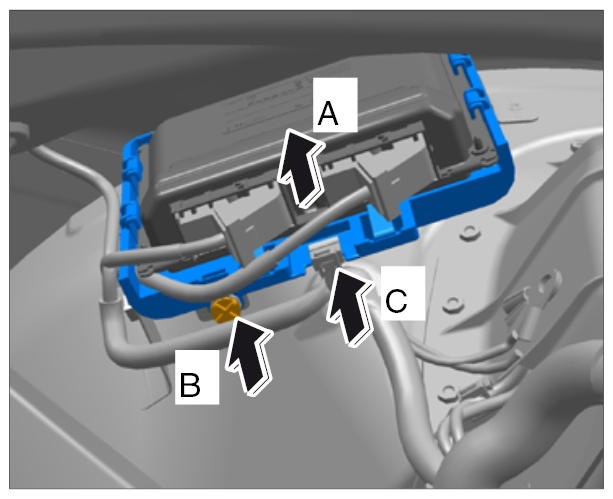

    Fig 2: Securing Control Unit
    G10026375Courtesy of PORSCHE CARS NORTH AMERICA, INC.
