Removing Selector Support

WARNING: This page is about a different variant/trim than selected.
  1. Move selector lever to position "P".
  2. Disconnect locking cable from the selector support.
    1. 2.1. Release the bayonet lock -arrow-  and unclip the locking cable -1-  .

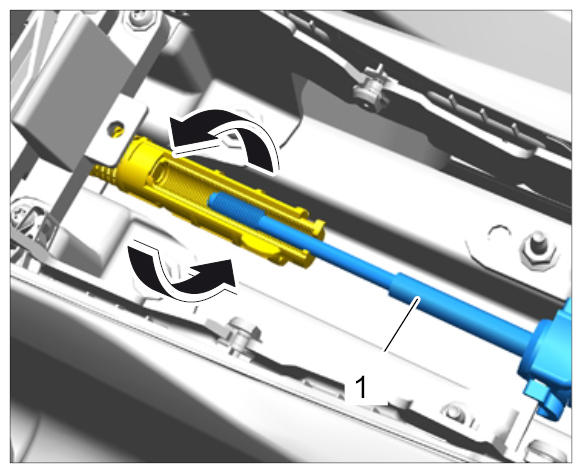

      Fig 1: Releasing Bayonet Lock For Locking Cable
      G10026360Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release and pull off cable plug -1-  .
  4. Unscrew fastening screws -2-  and remove selector support -3-  .

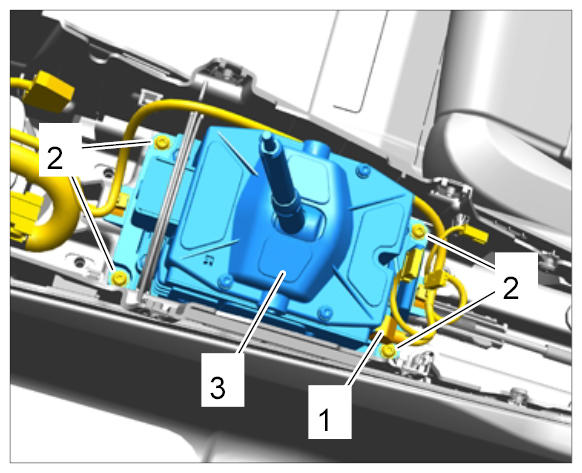

    Fig 2: Removing Selector Support (Shown On 991)
    G10026361Courtesy of PORSCHE CARS NORTH AMERICA, INC.
